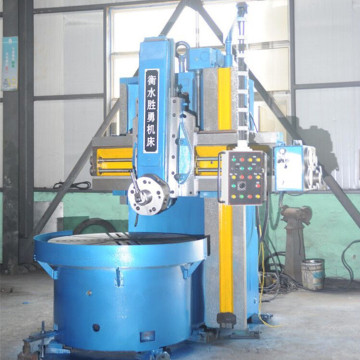

Vertical lathe tools vtl machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.:  C5116

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400 Mm

Maximum Turning Diameter: 1600 Mm

Maximum Height Of Workpiece: 1200 Mm

Maximum Weight Of Workpiece: 5 Ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

The vertical lathe tools apply to processing rough and fine turning the inner and outer cylinder, inner and outer taper, sophisticated arc surface.Vertical Turning Lathe Machine is especially fit for processing ferric, nonferrous metal and a few forms of non-metal materials components.
CNC Vertical Turning Lathes are a kind of machine that independent development by our own company.CNC VTL Machine features with various functions,high accuracy and high efficiency machining lathe.This kind of Vertical Lathes tool has been widely used in such fields:aerospace, shipbuilding,railway and valves.
According to customer needs, CNC VTL machine can be installed protection chip and water circulation system.Vertical lathe tools are mainly used in a variety of metal parts of the outer hole and the end cutting.
CNC vertical turning lathes are mainly fine processing on a variety of complex and curved surfaces and CNC VTL machine can effectively improve the workpiece machining accuracy and efficiency.

Vertical Lathe Tools

Main technical specifications of single column vertical lathe tools C5116

1 Table diameter 1400 mm

2 Maximum turning diameter 1600 mm

3 Maximum height of workpiece 1200 mm

4 Maximum weight of workpiece 5 t

5 Speed range of table 5-160 r/min

6 Step of table rotation 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 Horizontal travel of vertical slide 915 mm

Vertical travel of vertical slide 800 mm

10 Horizontal travel of side tool head 600 mm

Vertical travel of side tool head 900 mm

11 Beam travel 650 mm

12 Maximum section size of tool shank 30×40 mm

13 Power of main motor 22 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight 12.5 t

16 Overall dimensions(L ×W×H) 2800x2800 x3800 mm

Recommend vertical lathes tools vtl machine in stock

Vertical Lathe Tools

Vertical Lathe Tools

Vertical Lathe Tools

Vertical Lathe Tools

Looking for ideal Vertical Lathe Tools Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathes Tool are quality guaranteed. We are China Origin Factory of Vertical Lathes Tools. If you have any question, please feel free to contact us.
