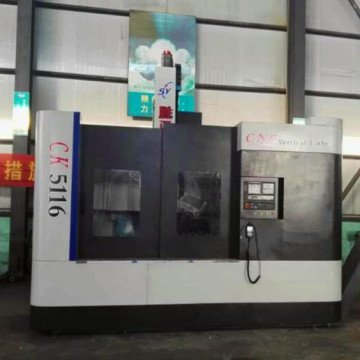

New vertical turning lathe machinery for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5120

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1800mm

Maximum Turning Diameter: 2000mm

Maximum Height Of Workpiece: 1250mm

Maximum Weight Of Workpiece: 6000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

CNC Vertical Turning Lathe machinery has the characteristics of stable precision, easy operation, advanced performance, safe and reliable service life and so on.Vertical turning lathe machinery is a single column lathe,widely used in the large scale mechanical processing metallurgy, chemical industry, motor, mines, ships, steel, military and other industries.Vertical turning lathe machinery for sale can be completing the workpiece outer circle, inner hole and end face and inside and outside the cone turning.

Vertical turning lathe machinery can be equipped with closed protective cover, can prevent cutting and coolant splash ,so as to achieve the purpose of environmental protection.Column, beam and RAM are used after quenching grinding process, which has superior wear resistance.CNC Vertical turning lathe machinery tool rest is driven by servo motor and ball screw, and can realize two coordinate linkage. Vertical turning lathe machinery adopts fully enclosed protection with electrical interlocking device, has good safety.

Vertical turning lathe machinery

Technical specification of single column vertical turning lathe machinery C5120
1 Table diameter :1800mm
2 Maximum turning diameter:2000mm
3 Maximum height of workpiece:1250mm
4 Maximum weight of workpiece:6ton
5 Speed range of table:2.5-80r/min
6 Step of table rotation :12
7 Range of feed rates:0.8-86 mm/min
8 Step:12
9 Horizontal travel of vertical slide:1000mm
Vertical travel of vertical slide:800 mm
10 Horizontal travel of side tool head:630 mm
Vertical travel of side tool head :900mm
11 Beam travel:700mm
12 Maximum section size of tool shank :30×40mm
13 Power of main motor:30kw
Rotating Speed :1470r/min
14 Power of feed motor :1.3/1.7kw
Rotating Speed :940/1440 r/min
15 Machine weight:17ton
16 Overall dimensions(L ×W×H) :3100x3000x3850mm
Recommend vertical turning lathe machinery for sale

vertical turning lathe machinery

vertical turning lathe machinery

vertical turning lathe machinery

vertical turning lathe machinery

Looking for ideal Vertical Turning Lathe Machinery Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Turning Lathe Machinery are quality guaranteed. We are China Origin Factory of Vertical Turning Lathe Machinery for Sale. If you have any question, please feel free to contact us.
