Heavy duty vertical turning lathe equipment

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5120

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 2000mm

Table Diameter: 1800mm

Maximum Height Of Workpiece: 1250mm

Maximum Weight Of Workpiece: 6000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

The Vertical Turning Lathe equipment belongs to heavy duty Vertical Lathes,widely used in machining industry, metallurgical machinery, mining machinery, chemical machinery and power generation equipment. Heavy duty vertical lathe can process workpiece of outer circle and the end surface, inner hole, groove ,inside and outside cone, any arc surfaces.Vertical turning lathe equipment is suitable for machining ferrous metals, nonferrous metals and parts of non metals with high speed steel cutting tools and carbide cutting tools.

Heavy duty vertical lathes adopts gantry framework,which make machine has the advantages of high strength, high stiffness and high vibration absorption.Heavy duty vertical lathe castings are subjected to strict manual aging and vibration aging to ensure the rigidity and stability of the machine tools.The spindle adopts double row cylindrical roller bearing, the mechanical action uses PLC to digital centralized control.

Heavy duty vertical lathe

Technical reference of heavy duty vertical turning lathe equipment C5120
1 Table diameter :1800mm
2 Maximum turning diameter :2000mm
3 Maximum height of workpiece:1250mm
4 Maximum weight of workpiece:6000kg
5 Speed range of table:2.5-80r/min
6 Step of table rotation :12
7 Range of feed rates:0.8-86 mm/min
8 Step:12
9 Horizontal travel of vertical slide:1000mm
Vertical travel of vertical slide:800mm
10 Horizontal travel of side tool head:630mm
Vertical travel of side tool head:900 mm
11 Beam travel:700mm
12 Maximum section size of tool shank :30×40mm
13 Power of main motor:30kw
Rotating Speed :1470r/min
14 Power of feed motor :1.3/1.7kw
Rotating Speed :940/1440r/min
15 Machine weight :17000kg
16 Overall dimensions(L×W×H) :3100x3000x3850mm

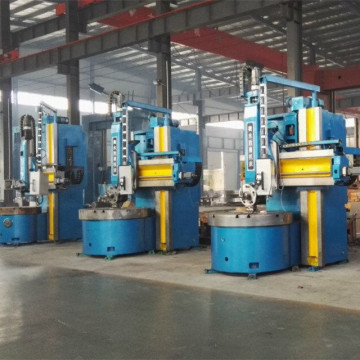

Recommend heavy duty vertical lathes in workshop

Heavy duty vertical lathes

Heavy duty vertical lathes

Heavy duty vertical lathes

Heavy duty vertical lathes

Looking for ideal Heavy Duty Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Heavy Duty Vertical Lathes are quality guaranteed. We are China Origin Factory of Vertical Turning Lathe Equipment. If you have any question, please feel free to contact us.
