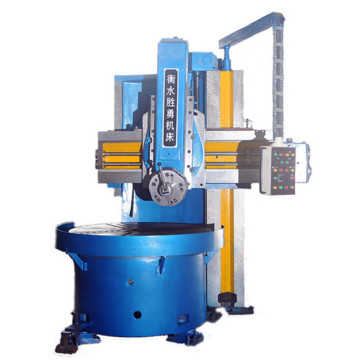

New Vertical turret lathe vtl working

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10ton

Power Source: Electric

Precision: Normal Precision

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Port: Tianjin

Product Description

Vertical Lathe Machine vtl machine can conduct turning for the tools like high speed steel machine ferric metal, non-ferrous metal and hard alloy,part of non-metal elements. Vertical Turret Lathe working is appropriate for rough and fine machining of complexed surfaces.Vertical Lathe Machine vtl can also be designed for cutting groove etc.

The vertical turret lathe has a five-station vertical turret and a four-station side turret,Vertical turret lathe is fit for machinery manufacturing and mechanical repair and other departments.Vertical lathe machine can complete the workpiece excircle, inner hole, end face and internal and external taper turning.Vertical lathe machine vtl Table, base, bed, column, beam and other major components can be designed into numbers of modules in order to meet different requests.

Vertical lathe machine Vtl is especially designed to meet the valves and wheels processing.According to the special order, side knife, digital display and other accessories can provided on vertical lathe machine Vtl machine,too.We have kinds of single column and double column vertical lathe machine.Contact us for single column and double column vertical lathe prices.

Vertical lathe prices

Technical specification of new single column vertical lathe prices CK5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10 t

5 Speed range of table 2.5-80 r/min

6 rotation speed of work table 16

7 Range of feed rates 0-1000 mm/min

8 Step stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight(Approx) 19.5 t

17 Overall dimensions(L ×W×H) 3450x3430x4100mm

Vertical turret lathe working range in the field of processing end face, the external cylindrical surface, conical surface and groove.

Vertical turret lathe working

Vertical turret lathe working

Vertical turret lathe working

Vertical turret lathe working


Looking for ideal Vertical Lathe Prices Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Turret Lathe Working are quality guaranteed. We are China Origin Factory of Vertical Lathe Machine Vtl. If you have any question, please feel free to contact us.
