Vertical lathe for machining of railway wheels

Vertical Lathes for wheels can be used for mechanical processing such as rough and finishing machining to inside and outside cylinder faces,inside and outside circular conical surfaces,hollows and different kinds of curve faces and notch cutting. It can be a specialized vertical lathes for wheels, process external column face, circular conical surface,head face, shotted, severance of car wheel lathe.

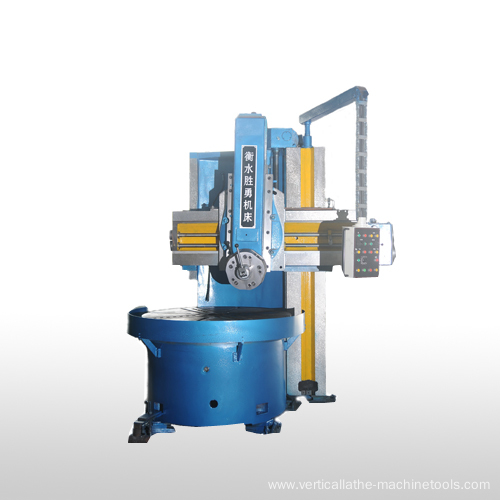

Vertical lathe for machining of railway wheels

Technical specification of Railway Vertical Turning Lathe C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm

Feature of Technical specification of Railway Vertical Turning Lathe C5126
