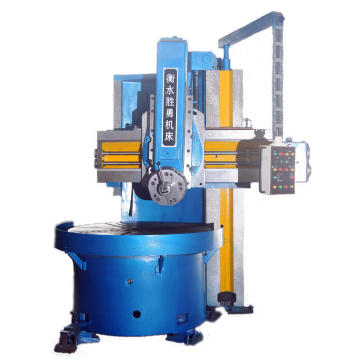

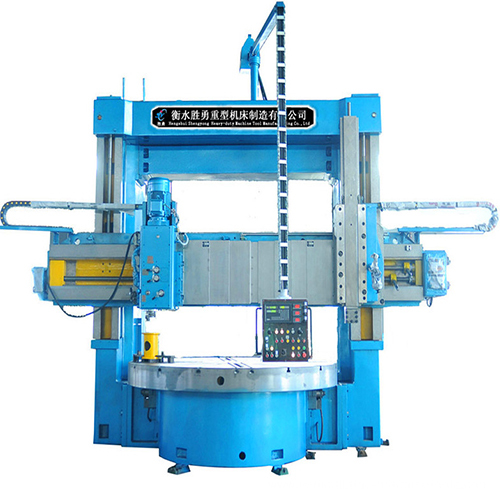

Single Turret Mechanical Vertical Lathe

Single Turret Mechanical Vertical Lathe Machines are processed and assembled according to the product assembly drawings and relevant technical requirements. Single Turret Mechanical Vertical Lathe Machines is designed for the roughing and finishing machining of black metal and non-ferrous metals with high-speed steel and carbide cutting tools.

Single Turret Mechanical Vertical Lathe Machines have the following features:

1. High rigidity gantry frame structure, large cross-section column and crossbeam, box-shaped structure, optimization reinforcement, all large workpieces are analyzed by finite element to ensure rigidity under stress condition.

2. Table uses constant hydraulic-static guideway, which has large carrying capacity and high rotary precision.

3. Main drive uses second or fourth gear to change speed. Users can equip with AC frequency, AC servo or DC servo main motor.

Technical specification of Single Turret Mechanical Vertical Lathe CK5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10 t

5 Speed range of table 2.5-80 r/min

6 rotation speed of work table 16

7 Range of feed rates 0-1000 mm/min

8 Step stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight(Approx) 19.5 t

17 Overall dimensions(L ×W×H) 3450x3430x4100mm
