Discount vertical turret lathe tooling and parts

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5112

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1000 Mm

Maximum Turning Diameter: 1250 Mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 3.2ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: hengshui shengyong

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Generally Vertical Turret Lathe tooling can be divided into single column vertical turret lathe tooling and double column vertical turret lathe tooling. vertical turret lathe tooling and parts is used for metal working and fit to process medium and small plates and cover parts. It is made of high strength cast iron base with good stability and earthquake resistance structure. The vertical structure makes Lathe Machine small footprint.

Product features of vertical turret lathe tooling and parts

1 feed is driven by AC servo motor and transmitted by ball screw.

2 Ram is complete by manual scraping and processing techniques

3 Static pressure guide rail plate is made of aluminum-copper-zinc alloy, reducing temperature of floating oil film promptly.

Turret lathe tooling

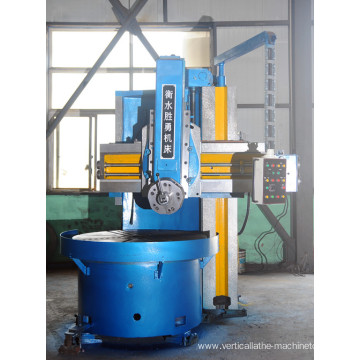

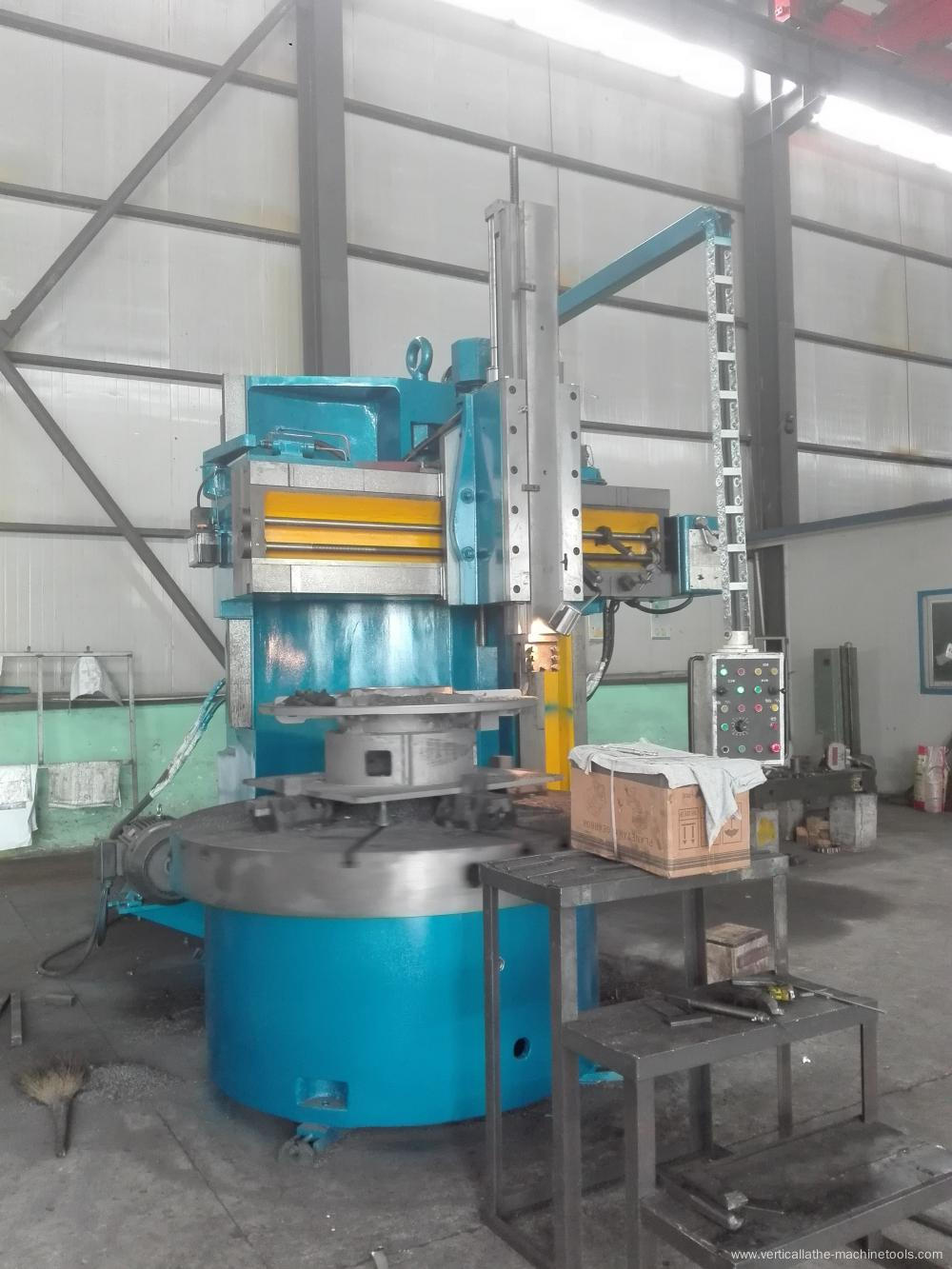

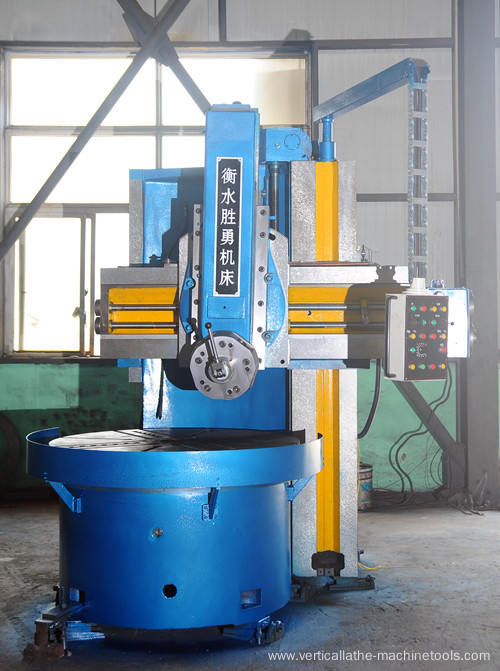

Technical specification of vertical turret lathe tooling and parts for metal working CK5112

1 Table diameter 1000 mm

2 Maximum turning diameter 1250 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 3.2 t

5 Speed change of table 6.3-200 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 700 mm

Vertical travel of tool post 650 mm

10 Horizontal travel of side cutter bar 600 mm

Vertical travel of side cutter bar 800 mm

11 Crossrail travel 500 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 9.5 t

17 Overall dimensions(L×W×H) 2460×2380×3000 mm

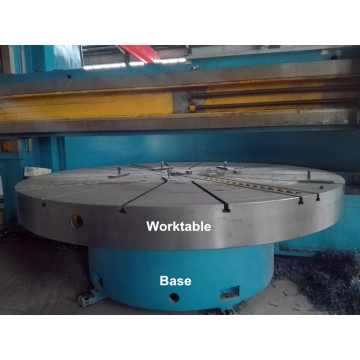

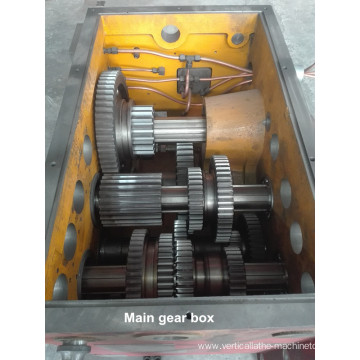

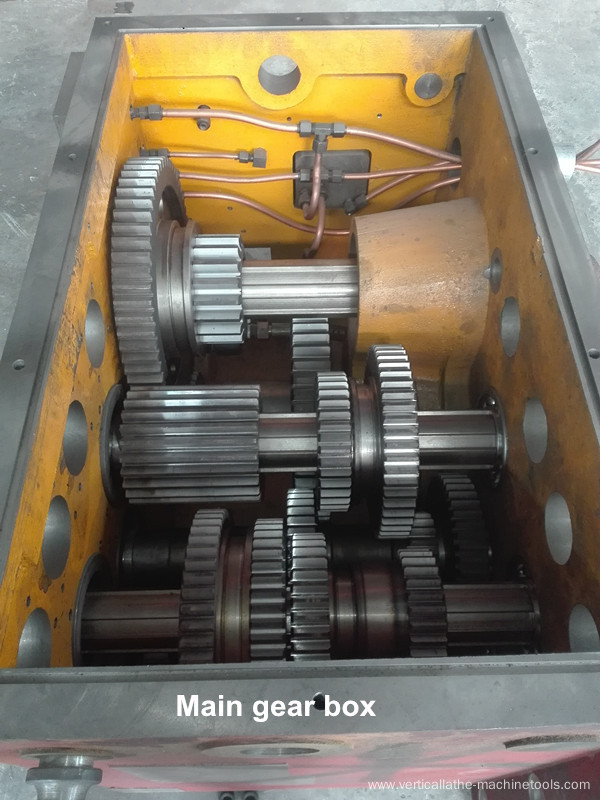

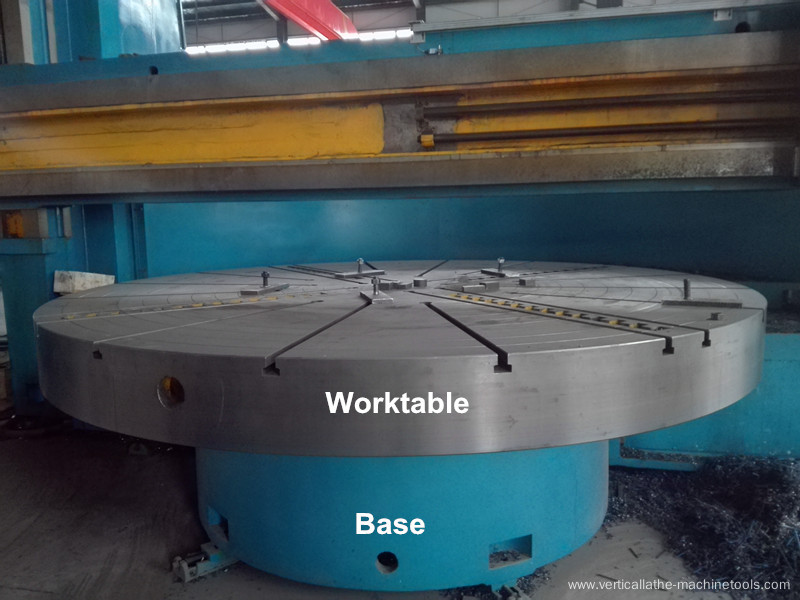

Parts of vertical turret lathe tooling and parts

Turret lathe toolingTurret lathe toolingTurret lathe tooling

Recommend other vertical turret lathe tooling and parts

Turret lathe partsTurret lathe parts

Looking for ideal Turret Lathe Parts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Turret Lathe Working are quality guaranteed. We are China Origin Factory of Turret Lathe Tooling. If you have any question, please feel free to contact us.
