Small cnc vertical lathe machine sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5125

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2500 Mm

Maximum Height Of Workpiece: 1350 Mm

Maximum Weight Of Workpiece: 10 Ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: hengshui shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Vertical Turning Lathe VTL Machine refers to vertical lathe. Usually, processing large diameter, short length large workpiece, heavy duty workpiece can choose vertical lathe as a choice. We can offer large Vertical Lathe Machine sale and small Lathe Machine sale. The large vertical lathe machine is made into double column,while small lathe machine sale is made into double column.

Main features of small vertical lathe machine sale is as follows:

1 worktable is in horizontal plane.

2 It is easy to install and adjust workpiece.

3 Table is supported by guideway with good rigidity.

Lathe machine sale

Technical specification of Small CNC Vertical Lathe Machine sale CK5125

1 Table diameter 2300 mm

2 Maximum turning diameter 2500 mm

3 Maximum height of workpiece 1350 mm

4 Maximum weight of workpiece 10 t

5 Speed change of table 2.5-80 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1600 mm

Vertical travel of tool post 915 mm

10 Horizontal travel of side cutter bar 750 mm

Vertical travel of side cutter bar 1100 mm

11 Crossrail travel 850 mm

12 Maximum section scale of tool bar 35×45 mm

13 Power of main motor 45 kw

revolutions 1470r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 23 t

17 Overall dimensions(L×W×H) 3450×3430×4100 mm

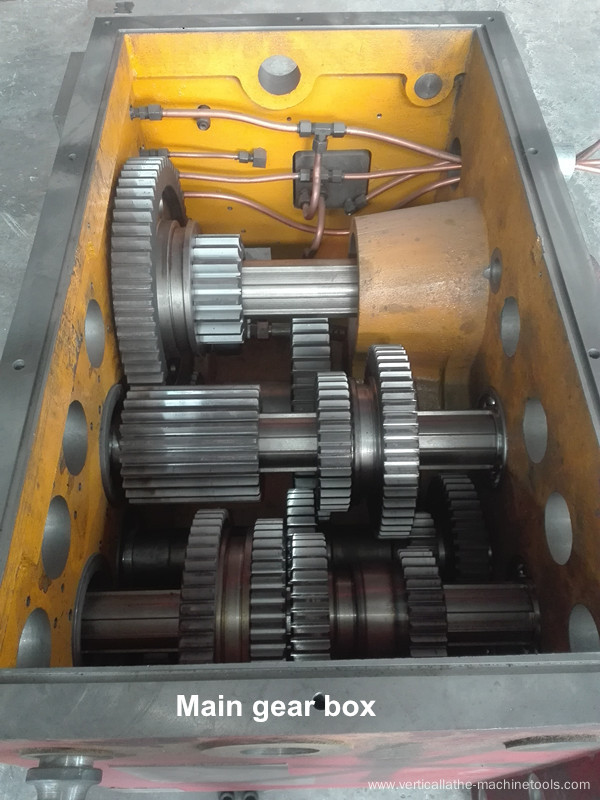

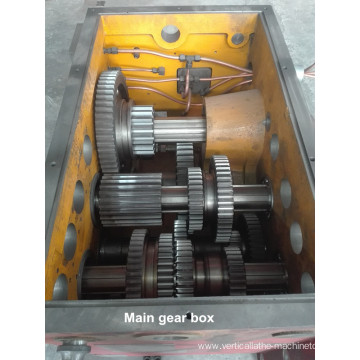

Parts of Small Cnc Vertical Lathe machine sale CK5125

Lathe machine saleLathe machine sale

Workshop of CNC Lathe Machine sale

cnc lathe machine salecnc lathe machine salecnc lathe machine sale

Looking for ideal Lathe Machine Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Lathe Machine Sale are quality guaranteed. We are China Origin Factory of Small Lathe Machine Sale. If you have any question, please feel free to contact us.
