Manual vertical turning lathe vtl machine specifications

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10 Ton

Additional Info

Packaging: re request

Productivity: 5 set

Brand: hengshui shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Manual Vertical Turning Lathe VTL Machine is a kind of Lathe Machine, apply to a variety of small and medium-sized ring parts, shells and flanges and other parts of circumcircle, outer cone, bore, cone surface. Single column Vertical Lathe Machine can also process a variety of disc-shaped parts.

Advantage of Manual Vertical Turning Lathe vtl machine specifications

1 The main transmission of the lathe is driven by main motor,and realizes the rotation speed range of the table through decelerating mechanism.

2 VTL machine specifications adopts high quality casting iron,a super rigid machine with big machining capacities,stable structure and high machining efficiency.

3 Columns, base adopts large size box layout, supporting overweight cutting.

Vtl machine specifications

Technical specification of Manual vertical turning lathe vtl machine CK5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10 t

5 Speed range of table 2.5-80 r/min

6 rotation speed of work table 16

7 Range of feed rates 0-1000 mm/min

8 Step stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight(Approx) 19.5 t

17 Overall dimensions(L ×W×H) 3450x3430x4100mm

Parts of Manual vertical turning lathe vtl machine

Vtl machine specificationsVtl machine specificationsVtl machine specifications

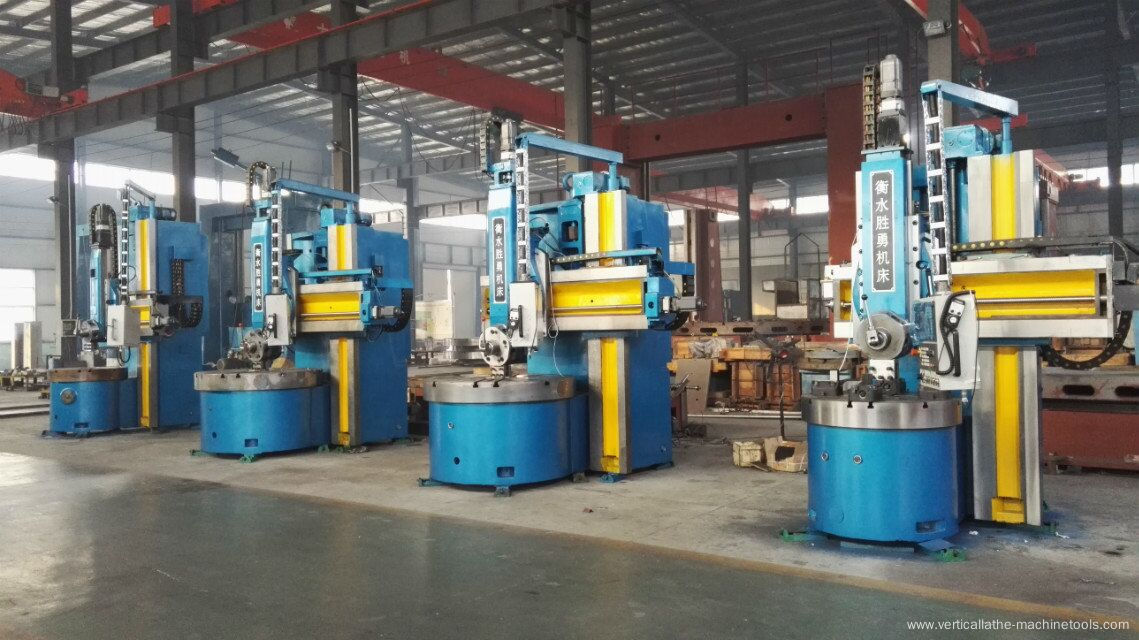

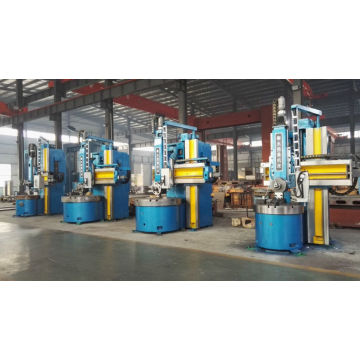

Manual vertical turning lathe vtl machine shop

Manual vertical turning latheManual vertical turning latheManual vertical turning lathe
