New cnc vertical turret lathe offer

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Vertical Turret Lathe machining is widely apply in processing various shapes of shaft, sleeve, disk parts, such as turning the inner and outer cylindrical surface, conical surface, circular surface, end face, slotted, chamfering, drilling, reaming and thread.Our new CNC Vertical Turret Lathe is based on the latest development trend on the international market, absorbing the advanced technology of similar machine tools at home and abroad.The new cnc lathe is easy to install. And new cnc lathe features high processing efficiency and simple operation.Vertical turret lathe machining can reduce the technical requirements of workers, is the ideal mechanical processing equipment in complex short shafts and disk parts.

New cnc vertical turret lathe

Technical specification of new cnc vertical turret lathe C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100mm

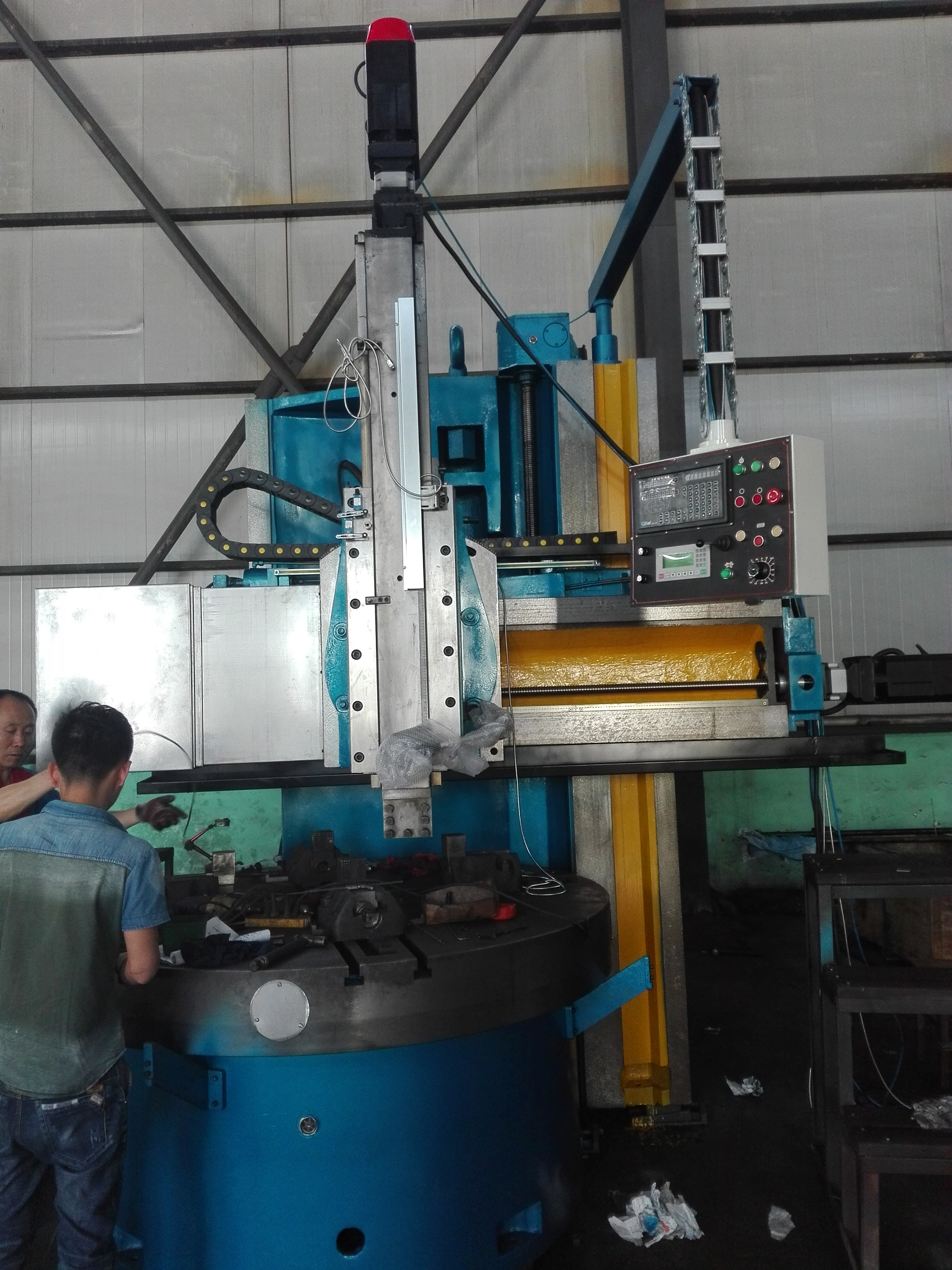

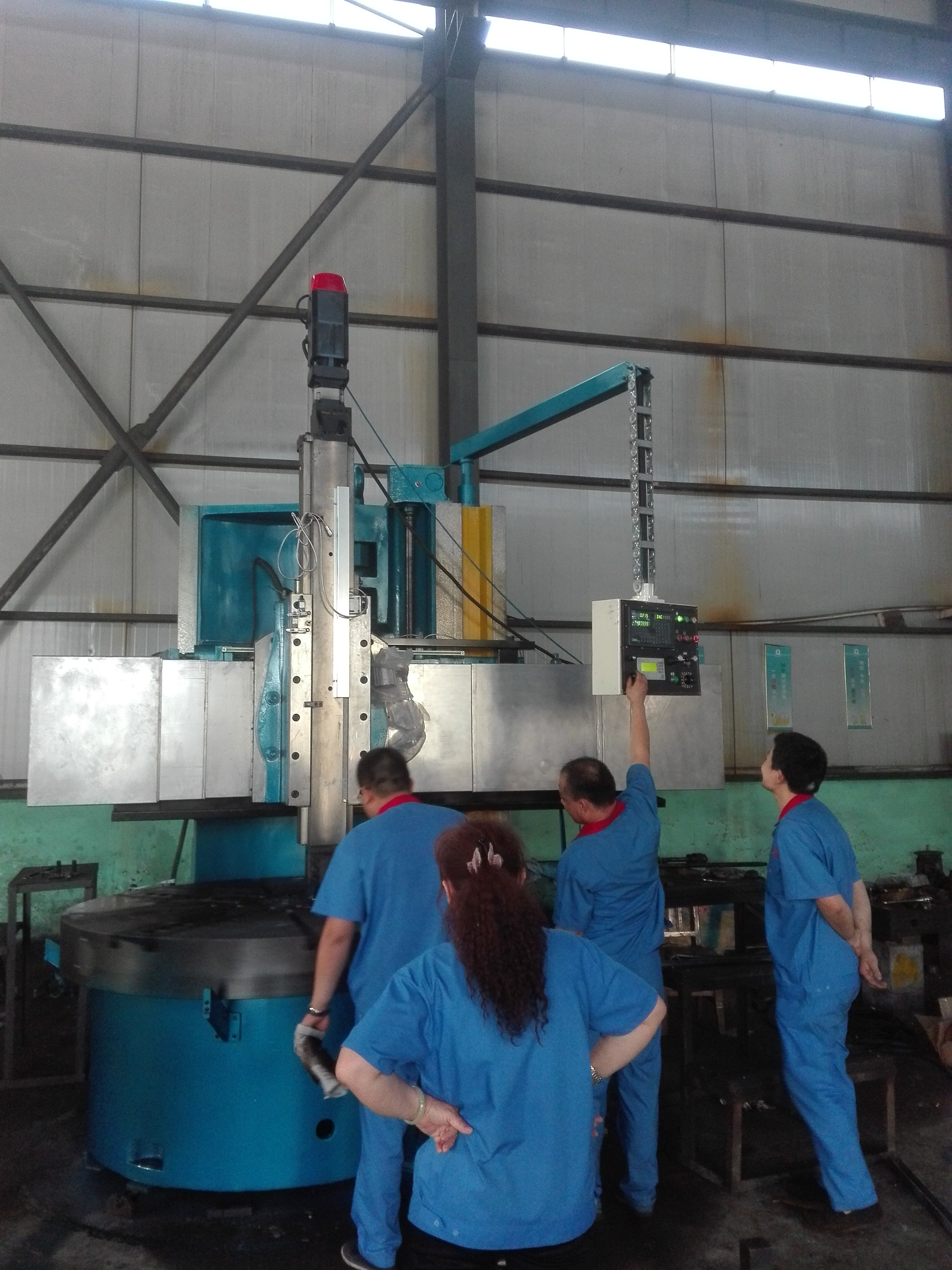

Recommend new cnc lathe in workshop

New cnc lathe

New cnc lathe

New cnc lathe

New cnc lathe

Looking for ideal Vertical Turret Lathe Machining Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the New Cnc Lathe are quality guaranteed. We are China Origin Factory of New Cnc Vertical Turret Lathe. If you have any question, please feel free to contact us.

Product Categories : Vertical Turret Lathes

Product Images

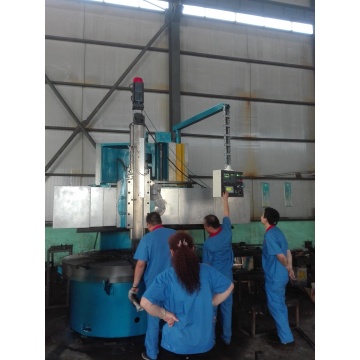

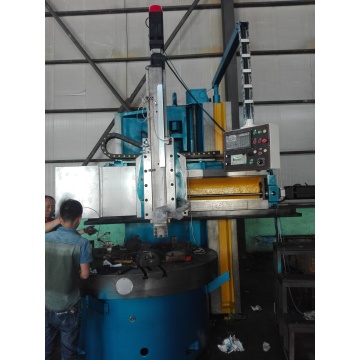

  • New cnc vertical turret lathe offer
