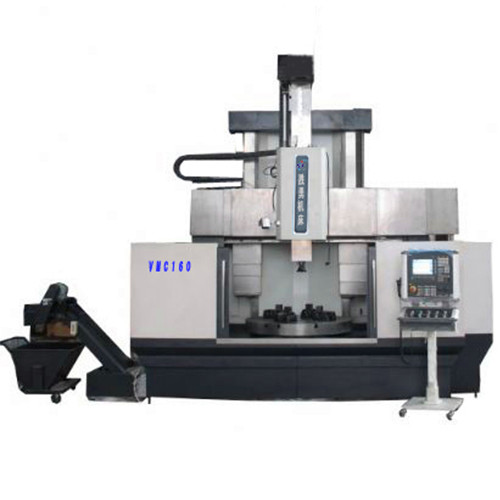

Vertical Turning Milling Machining Center

    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: VMC160

Table Diameter: 1250mm

Maximum Machining Diameter: 1600mm

Maximum Machining Height: 1400mm

Maximum Loading Capacity Of Table: 8 Ton

Additional Info

Packaging: 1x40'ft container

Productivity: 5 set

Brand: Hengshui Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Product Description

Vertical Turning Milling Machining Center (VMC) is suitable for finely machining large duty workpiece and complex parts in the industries of astronautical,aviation,energy sources,military and ship industry etc fields. Clamping once it can achieve turning,milling,drilling,boring,grinding,tapping etc process.

Parameter Unit VMC160

Table diameter mm 1250

Maximum machining diameter mm 1600

Maximum machining height mm 1400

Maximum loading capacity of table T 8

Table guideway type

Turning speed of table r/min 315

Milling speed of table r/min 0.0002-2

Maximum torque of table KNm 12

Section size of Ram Turning mm 280×280

Maximum travel of Ram Z axis mm 800

Rapid travel of head (X,Z axis) mm/min 2000

Maximum cutting force when machining :Turning KN 35


Spindle speed of boring milling r/min 10-2500

Spindle hole taper Turning Milling ISO 50

Beam lift speed mm/min 410

Power of main motor KW 30

Looking for ideal VERTICAL MACHINING CENTERS Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Machining Center are quality guaranteed. We are China Origin Factory of VMC Machine Centor. If you have any question, please feel free to contact us.
