Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: VMC 400
Brand: Shengyong
Maximum Loading Capacity Of Table: 20t
Table Diameter: 3600mm
Maximum Machining Diameter: 4000mm
Maximum Machining Height: 3150mm
Packaging: 1x40'ft container
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set/month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB
CNC vertical milling machining center is designed by our own research ,absorbing domestic technology. This machine has turning, milling, locks, drilling, grinding, and other functions. Once clamping it can achieve many processes. Advantage of CNC vertical milling machining center 1. T-shaped base structure, which can withstand stronger dynamic load. 2. Widened column, with better rigidity. 3 CNC system adopts Siemens 840D and can achieve a variety of complex surface interpolation processing.

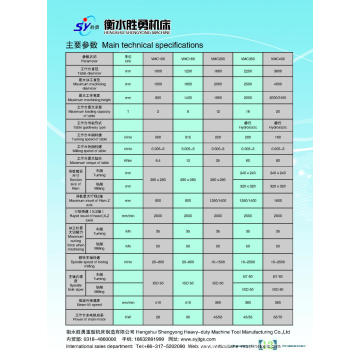

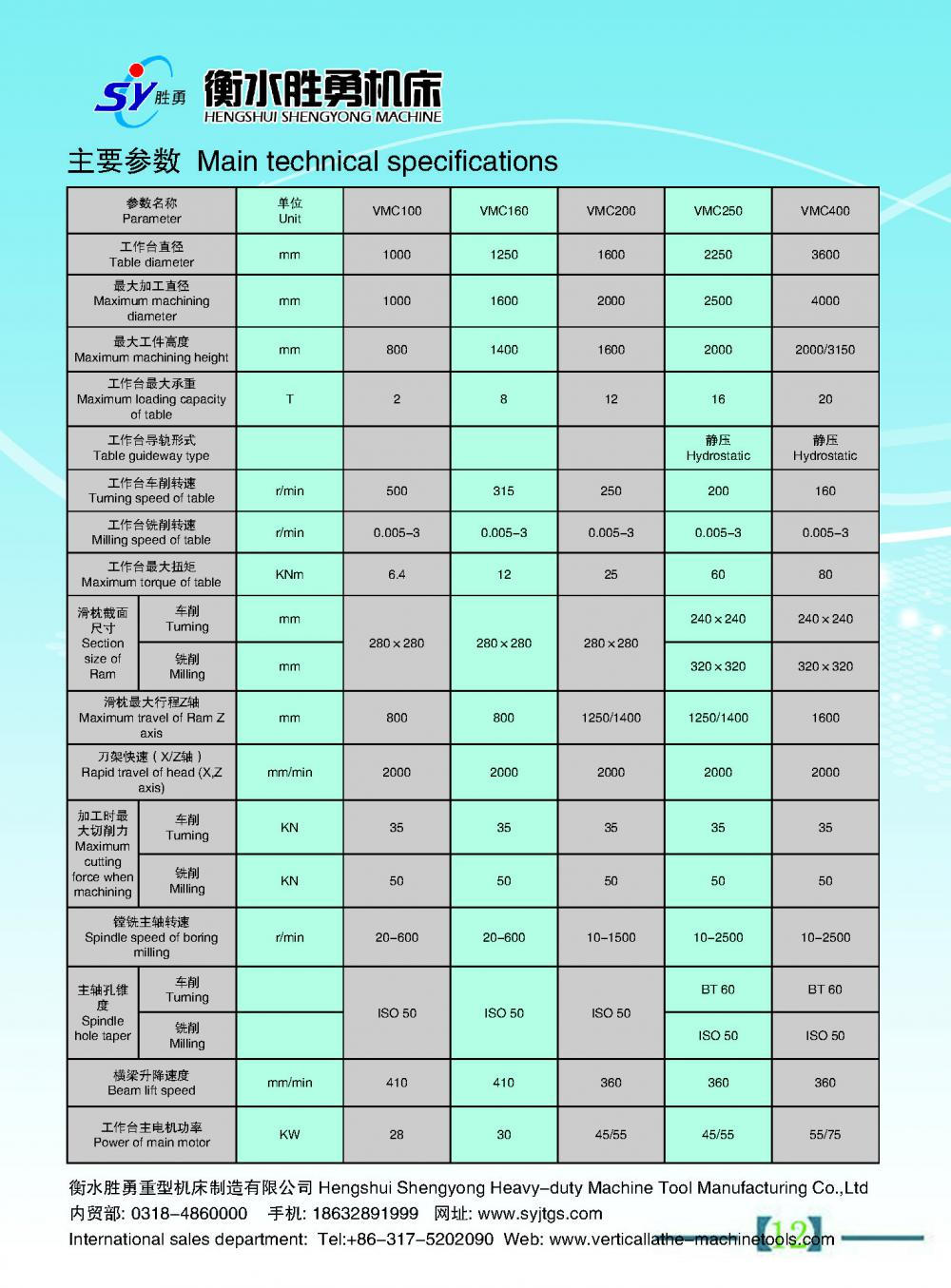

Technical parameters of vertical machining centre VMC400 for sale
Table diameter 3600 mm
Maximum machining diameter 4000 mm
Maximum machining height 2000/3150 mm
Maximum loading capacity of table 20 T
Table guideway type:Hydrostatic
Turning speed of table 160 r/min
Milling speed of table 0.0002-2 r/min
Maximum torque of table 80 KNm
Section size of Ram Turning 240×240 mm
Milling 320×320 mm
Maximum travel of Ram Z axis 1600 mm
Rapid travel of head (X,Z axis) 2000 mm/min
Maximum cutting force when machining Turning 35KN
Spindle speed of boring milling 10-2500 r/min
Beam lift speed 360 mm/min
Power of main motor 55/75 KW
