Factory directly provide 3 axis cnc machining center

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: VMC160

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1250 Mm

Maximum Machining Diameter: 1600mm

Maximum Machining Height: 1400mm

Maximum Loading Capacity Of Table: 8ton

Turning Speed Of Table: 315r/min

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Factory directly provide 3 axis cnc machining center is widely used in military, automotive, aerospace, mold, machine tools, farm machinery and other manufacturing industries in various parts of the precision machining. Because of its rigidity, big spindle motor power, low-speed torque, Vertical machine center is particularly suitable for machining complex shapes or having a cavity in large parts and molds and other mechanical parts.

Model of 3 axis cnc machining center: VMC160 VMC250 VMC315 VMC350 VMC400

Table diameter 1250/2250/2830/3150/3600mm

Maximum machining diameter:1600/2500/3150/3500/4000mm

Maximum machining height:1400/2000//2500/3150mm

Maximum loading capacity of table:8/16/20ton

Technical parameters of 3 axis cnc machining center VMC160

Table diameter 1250 mm

Maximum machining diameter 1600mm

Maximum machining height 1400mm

Maximum loading capacity of table 8ton

Table guideway :type

Turning speed of table 315r/min

Milling speed of table 0.0002-2r/min

Maximum torque of table 12KNm

Section size of Ram Turning 280×280mm

Maximum travel of Ram Z axis 800mm

Rapid travel of head (X,Z axis) 2000mm/min

Maximum cutting force when machining :Turning 35KN

Spindle speed of boring milling 10-2500r/min

Spindle hole taper Turning Milling ISO 50

Beam lift speed 410mm/min

Power of main motor 30KW

CNC Milling Machine Center3 axis cnc machining center

Looking for ideal 3 Axis Cnc Machining Center Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Milling Machine Center are quality guaranteed. We are China Origin Factory of CNC Milling Machining Center. If you have any question, please feel free to contact us.

Product Categories : VMC Machine

Product Images

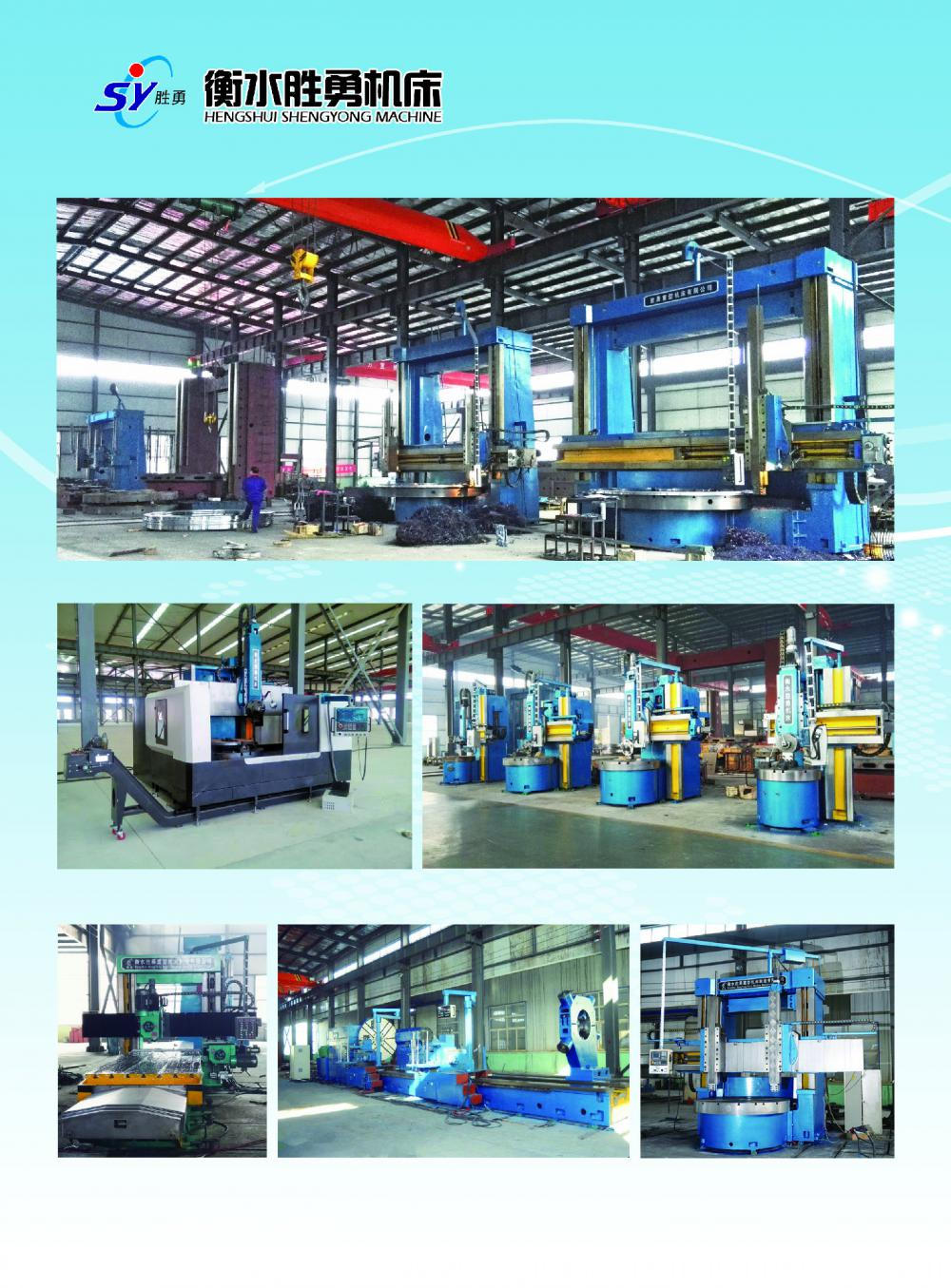

  • Factory directly provide 3 axis cnc machining center
