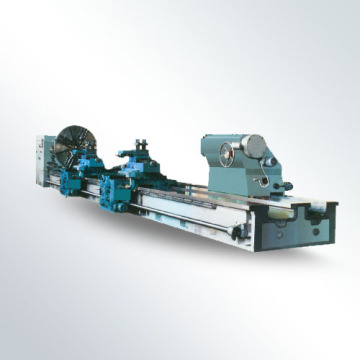

Application fields of Heavy duty horizontal Lathe Machine CW61315
Heavy duty horizontal lathe machine can be used for drilling, trepanning and boring operations . Braking and rotating-direction change of spindle is controlled by hydraulic power with sensitive and reliable performances.
Heavy duty horizontal lathe features
1 CNC Heavy Duty Horizontal Lathe adopt a modular design with high technology.
2 Heavy-duty horizontal lathe has a large loading capacity, high precision, reasonable structure .
3 Heavy-duty horizontal lathe can play the function of processing conical surface, hook face, step shaft, grooving and threading full automatically.

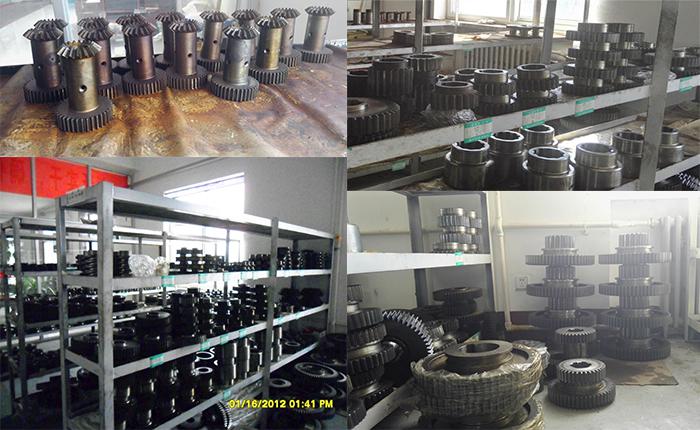

4 The major parts contain bed, headstock, turret and so on, which are made of high-strength cast iron, with good stability and long-term accuracy .
5 Spindle adopt the high powder motor to drive. It is high torque and can play the strong cutting at a slow speed.
6 Feed system adopt the stretched ball screw, increasing the screw rigidity and prevent the deformation of the screw.
7 All the down guide rail are imported from high chromium copper plate. It will maximize the contact area by using the scraping and grinding method.

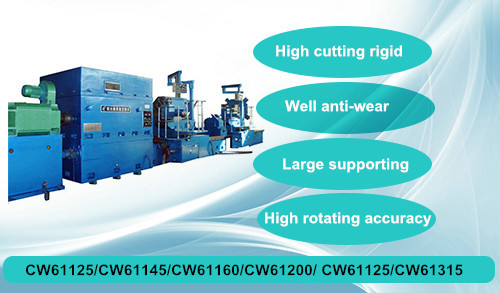

Large horizontal Lathe machine model:
CW61125/CW61145/CW61160/CW61200/CW61125/CW61315
CK61100/CK61125/CK61160/CK61200/CK61250
Technical specification of Heavy duty horizontal lathe machine CW61315
1 Maximum swivel diameter on the bed 3150 mm
2 Maximum turning diameter over carriage 2500 mm
3 Maximum length of workpiece 140 dm
4 Maximum weight between center 80t
5 Diameter of faceplate 2600mm
6 Maximum torque of faceplate 160KN.m
7 Range of spindle speeds 0.5-100 r/min
8 Maximum cutting force of carriage 90 KN
9 Total cutting force 160 KN
10 Range of feed rates ( long) 0.265-500 mm/min
11 Range of feed rates(Trans ) 0.106-200 mm/min
12 Range of feed rates(longitudinal) 0.053-100 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1200 mm/min
15 Scale of tool bar section 100×100mm
16 Power of main motor DC:125KW
17 Machine weight(Approx) 138 T
18 Overall dimensions(L×W×H) 2328×894×407cm
