Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5263
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Manual
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Maximum Height Of Workpiece: 4150mm
Maximum Turning Diameter: 6300mm
Maximum Weight Of Workpiece: 100ton
Table Diameter: 5750mm
Packaging: on request
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB

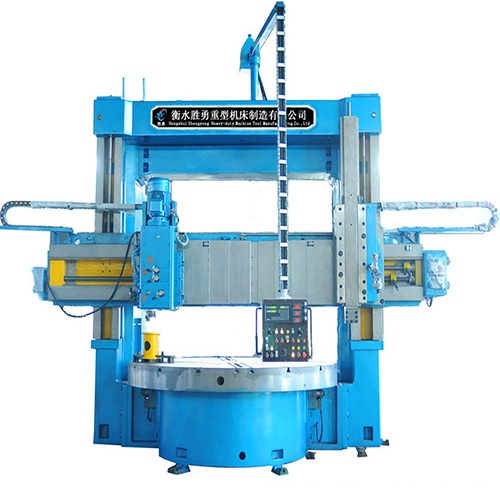

Conventional Vertical Lathe machine is a kind of advanced equipment with good performance and a wide range of technology, high production efficiency, machining applicable to all industries, can be employed for circular arc surface and curve surface, inner and outer conical surface,inner and outer cylinder, thread rough and finish machining.
Characteristics of Conventional Vertical Lathe Machine:
1 Worktable has a good rigidity with smoothly cutting,very easy for installation and adjustment .
2 Conventional Vertical Lathe Machine layout can effectively reduce the load of main shaft and the bearings,thus maintaining good long working accuracy.
3 Spindle bearing adopts high precision double row cylindrical roller bearings, the guide rail of the worktable uses the constant flow hydrostatic guideway and a constant temperature cooling to ensure the accuracy of rotation, stiffness, strength and thermal stability of conventional vertical lathe.
Technical specification of Conventional Vertical Lathe machine C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 3150/3650/4150 mm
3 Maximum Weight of workpiece 50/80/100 t
4 Table diameter 4500/5750 mm
5 Speed range of table 0.5-50r/min
6 Maximum torque 1 60KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm
Parts of Conventional Vertical Lathe machine
