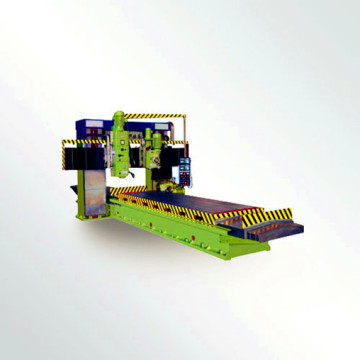

Manual Gantry & Double Column milling machine

Plano Milling Machine is suitable for the horizontal, vertical or sloping grooving, milling for large and medium-sized parts. Plano Miller Machine can be applied to ferrous or non-ferrous metal parts on a variety of machines.The machine is gantry type manual double volumn milling machine.Double Column milling machine is suitable for machinery, iron and steel, energy, automotive, aviation aerospace, weapons, ships and other industries of large and medium-sized parts processing.Gnatry type double column milling machines are used in machining, moulding and some other industries, especially double column milling machine can be machining of plane/end face/inclined plane/T slot/ combined guideway of large/medium/small machine parts.
Double Column milling machines can be addedl grinding head to meet the different requirements.
Double Column milling machines main components include bed, table, left and right columns, beams, gantry top, connecting beams,which are made of resin sand molding,  hot bunker →  Annealing → Vibratory Stress Relief→Roughing→Vibratory Stress Relief→Finished, thoroughly eliminating the negative pressure of the machinery keep stable performance.

Technical specification of  manual double Column milling machine X2130

Maximum workpiece size: Long 6000

Maximum workpiece size: Width 3100mm

Maximum workpiece size: Height 1400mm

Table speed 30-1500mm/min

Number of milling head 2

Power of Milling head 5.5kw/7.5kw

Number of Side head 1

Power of Side head 5.5kw

Beam lifting speed 570mm/Minute

Machine maximum volume: Long 13000mm

Machine maximum volume: Width 5400mm

Machine maximum volume: Height 3800mm

Machine weight 55T

Parts of manual double column milling machine
