Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5232
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Manual
Controlling Mode: CNC
Automatic Grade: Manual
Setting Mode: Table
Precision: Precision
Certification: ISO 9001
Condition: New
Table Diameter: 2830mm
Maximum Height Of Workpiece: 1600mm
Maximum Weight Of Workpiece: 10 Ton
Maximum Turning Diameter: 3150mm
Packaging: on request
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB

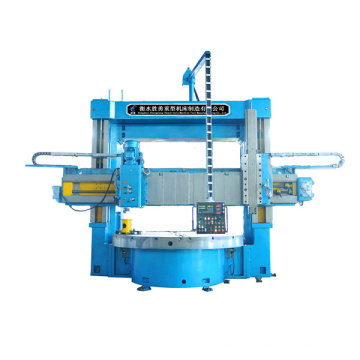

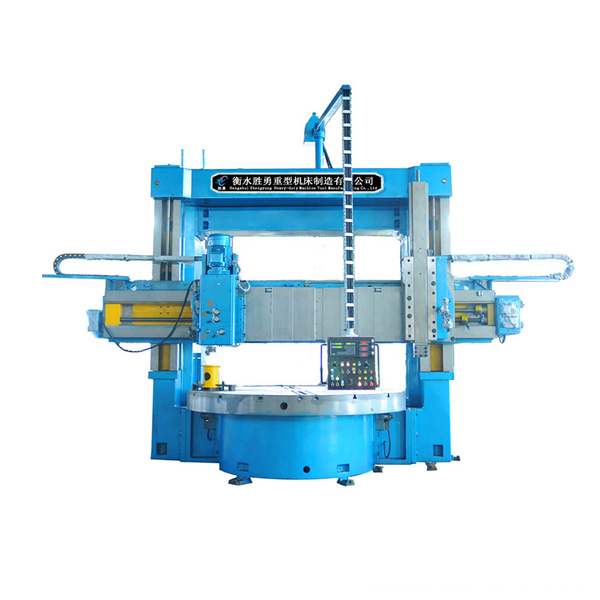

Reasonable Boring Mills & VTL machine is designed by FEA (Finite Element Analysis) especially for high-efficiency, high-rigidity and heavy-duty cutting. it can do the high-speed cutting of the internal and external cylindrical surface, internal and external conical surface, arc, screw and rotary surface.
1 Workbench has the features of high running accuracy, large carrying capacity and small thermal deformation.
2 Table spindle is centered by high-precision double-row short roller bearing whose radial clearance can be adjusted.
3 All the casting adopt high quality resin sand casting process after aging treatment. The steel materials has been quenched and conducted with hardening treatment.
Vertical Turning Lathes VTL machine model:
C5112/C5116/C5118/C5120/C5123/C5125/C5126
Maximum turning diameter:1250 1600 1800 2000 2300 2500mm
Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm
Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t
Technical specification of Vertical lathe VTL Machines C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum Weight of workpiece 10/20 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t
