Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5232
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Table Diameter: 2830mm
Maximum Turning Diameter: 3150mm
Maximum Height Of Workpiece: 3000mm
Maximum Weight Of Workpiece: 20ton
Packaging: on request
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB
Twin spindle CNC Vertical Lathes
Multifunctional Twin spindle CNC Vertical Lathes with large turning capacity, stable and rigid construction and high machining efficiency for rough or fine turning on internal or external cylindrical surfaces, taper surfaces, end surfaces, grooving, boring, drilling and reaming etc.
Technical specification of Twin spindle CNC Vertical Lathes C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum Weight of workpiece 10/20 t

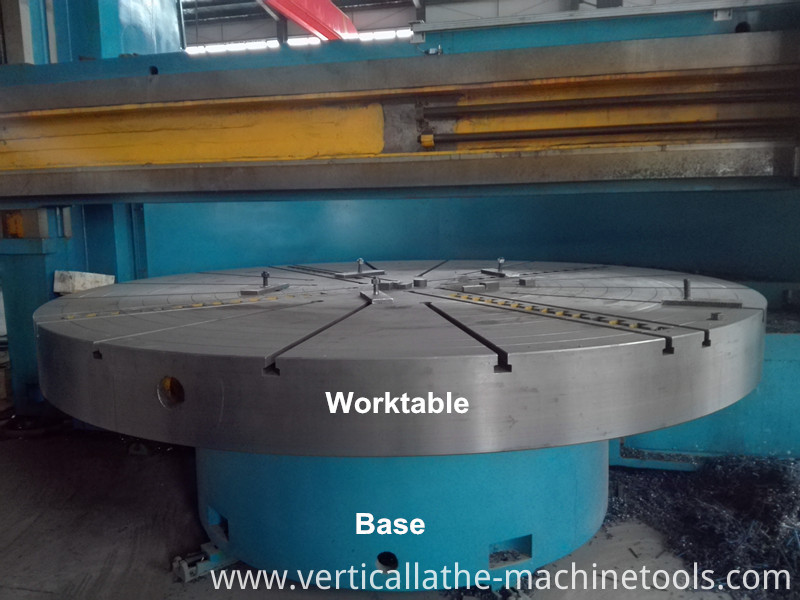

4 Table diameter 2830 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t
Feature of Twin spindle CNC Vertical Lathes
