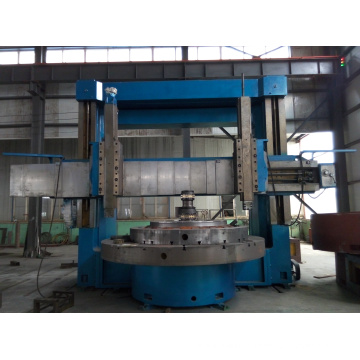

Manual vertical lathes VTL machines

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 3150 Mm

Maximum Weight Of Workpiece: 32ton

Maximum Turning Diameter: 4000 Mm

Maximum Height Of Workpiece: 3000 Mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

This manual Vertical Lathes is mainly used for machining large and heavy-duty workpiece withith larger diameter,shch as machining inner cylinder and outer cylinder,inner and outer cone-shaped surface,grooving,reaming on different types of disc, wheel and set work.

Quick Detail:

1. Manufacturer:Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd. China

Manual Vertical Lathes and CNC Vertical Lathes--Double Column and single column.

2. Good Quality, High Reliable--Have more than 30 years`s experience

3 Maximum turning diameter:2500/3150/4000/5000/6300mm

4 Manual vertical turning lathes are suitable for Cylindrical parts, Wheels, Flanges, Tyre Moulds, and other metal parts with convenient installation and debugging on workpiece, Big support workbench, good rigidity and smooth cutting.

We are pleased to offer our clients with manual vertical lathe and Cnc Vertical Lathe.

Manual vertical lathes

Technical specification of Manual vertical lathes C5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

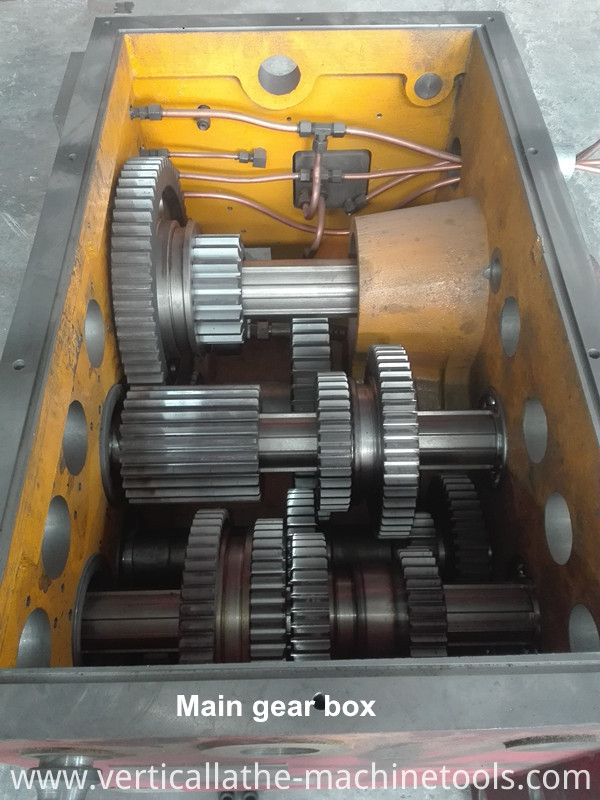

Manual vertical lathes VTL Machines parts

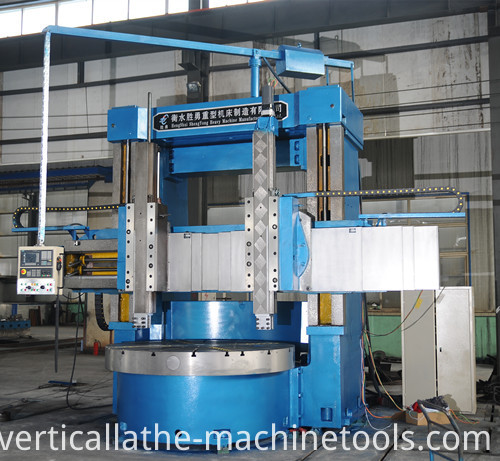

Manual vertical lathes

Manual vertical lathesManual vertical lathesManual vertical lathesManual vertical lathes

Recommend Manual Vertical Turret Lathes for sale

Manual vertical lathesManual vertical lathesManual vertical lathes

Looking for ideal Manual Vertical Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Manual Vertical Turning Lathes are quality guaranteed. We are China Origin Factory of Manual Vertical Turret Lathes. If you have any question, please feel free to contact us.
