Double column Conventional VTL vertical lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets

Basic Info

Model No.C5235

BrandShengyong

TypeVertical Lathe

Processing AccessoryChuck CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderDouble-tool Holder CNC Lathe

Power SourceManual

Controlling ModeArtificial

Automatic GradeManual

Setting ModeTable

PrecisionNormal Precision

CertificationISO 9001

ConditionNew

Maximum Height Of Workpiece1600-3000mm

Maximum Turning Diameter3200mm

Maximum Weight Of Workpiece10/20/32ton

Table Diameter:2830mm

Additional Info

Packagingas request

Productivity5 set

TransportationOcean

Place of OriginChina

Supply Ability5 set /month

CertificateISO9001

PortTianjin

Payment TypeL/C

IncotermFOB

Product Description

Conventional VTL vertical lathe can achieve strong, high precision and high efficiency processing.Conventional VTL vertical lathe can finish the inside and outside cylindrical surfaces, inside and outside cone surfaces, plane and cutting groove of the rough and fine turning.Conventional VTL vertical lathe is suitable for high speed steel and carbide cutting tools, processing all kinds of ferrous metals, nonferrous metals and some non-metallic materials of the workpiece.Conventional VTL Vertical Lathes are especially fit for motor vehicles and  brake disc, wheel body, crankshaft, wheel hub, disc type parts.

Conventional VTL vertical lathe adopt finite element methods to guarantee high strength and high stiffness.The gantry frame structure includes the left and right columns, the connecting beam and the worktable base. Conventional lathe vtl is mainly composed of gantry frame, main drive gearbox, worktable, beam, lifting mechanism, turret, feed system, hydraulic system and electric control system.

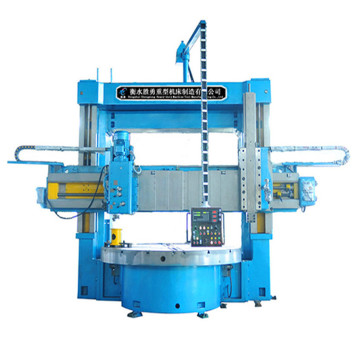

Conventional VTL vertical lathe

Technical reference of Double column Conventional VTL vertical lathes C5235
Table diameter:Φ2830mm
Maximum turning diameter:Φ3200mm
Maximum height of workpiece:1600-3000mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table:63000N.m
Step of table rotation:16 step
Speed range of table:2-40r/min
Feed step :18 step
Range of feed rates:0.25-90mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250 mm
Horizontal travel of tool post:1900 mm
Vertical travel of tool post:1000/1250/1400/1600 mm
Beam lifting speed:350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55 KW
Overall dimensions (L×W×H ):6180×4600×4952 mm
Machine weight ( approx ):38-62ton
Recommend conventional lathe vtl machine in workshop

Conventional lathe vtl

Conventional lathe vtl

Conventional lathe vtl

Conventional VTL vertical lathe

Conventional VTL vertical lathe
