Unit Price: | USD 50000 - 90000 / Set/Sets |
---|---|
Payment Type: | L/C |
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: C5116
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Table Diameter: 1400mm
Maximum Turning Diameter: 1600mm
Maximum Height Of Workpiece: 1000mm
Maximum Weight Of Workpiece: 5 Ton
Packaging: on request
Productivity: 5 set/month
Transportation: Ocean
Place of Origin: Hengshui City,Hebei Province
Supply Ability: 5 set/month
Certificate: ISO&CE
Payment Type: L/C
Incoterm: FOB

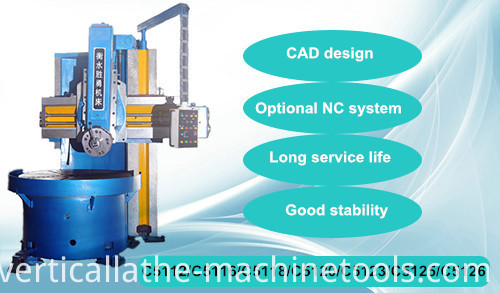

Conventional Vertical Turning Lathe Machine is designed and manufactured to process I.D.& O.D. cylindrical turning, End-facing, I.D.& O.D. cone turning for rough & finish machining. Grooving and Threading function can also finished on cast iron, alloy steel and other materials. Conventional Vertical Turning Lathe machine has a wide application in valve ,pump , bearing industries, automotive, wind power and oil industries.
Conventional vertical Turning Lathe Machine model and feature
1 Table diameter 1400 mm
2 Maximum turning diameter 1600 mm
3 Maximum Height of workpiece 1000 mm
4 Maximum Weight of workpiece 5 t
5 Speed range of table 5-160 r/min
6 Working table Step of rotation speed 16 step
7 Range of feed rates 0.8-86 mm/min
8 Step 12 step
9 horizontal travel of vertical slide 915 mm
Vertical travel of vertical slide 800 mm
10 Horizontal travel of side tool post 600 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 650 mm
12 Maximum size of tool bar section 30×40 mm
13 Power of main motor 22 kw
Rotating Speed 1470 r/min
14 Power of feed motor 1.3/1.7 kw
Rotating Speed 940/1440 r/min
15 Machine weight(Approx) 12.5 t
16 Overall dimensions(L ×W×H) 2800 x2800X3800 mm
