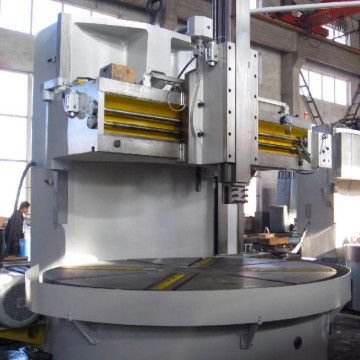

Different types vertical lathe models for sale

Vertical lathe model C5123 is Economical Vertical Lathe machine, the vertical lathe modes are fit for a variety of small and medium-sized ring, shell and flange parts such as the outer circle, outer cone, surface turning and other processing.Economical Vertical Lathe Machine is designed for steel ball equipment,processing and design, but also widely applicable to a variety of disc-shaped parts processing.
The vertical lathe model has many advantages: increasing bese diameter, widening rail surface, super RAM section,hydrostatic guideway, frequency stepless speed change, centralized lubrication.Economical vertical Lathe Machine can be used in mold manufacturing, aerospace, weapons industry and other mechanical processing industry.

 Vertical lathe models: C5112/C5116/C5118/C5120/C5123/C5125/C5126

Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm

Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm

Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t

Technical specification of Advanced Vertical lathe machine models C5123

1 Table diameter 2000mm

2 Maximum turning diameter 2300mm

3 Maximum height of workpiece 1300mm

4 Maximum weight of workpiece 8 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12

9 Horizontal travel of tool post 1250mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 650mm

Vertical travel of side cutter bar 1000mm

11 Crossrail travel 750mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 19.5 t

16 Overall dimensions(L×W×H) 3300×3280×4000 mm

Different types vertical lathe models in factory
