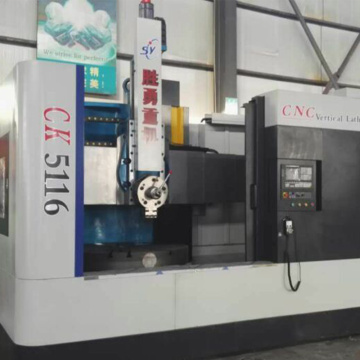

Computer Numerical Control vertical lathe

Vertical Turning Lathe VTL Machines is suitable for machining in various industries, and has cnc type and manual type. Cnc Vertical Lathe type can be used for rough and fine turning of inner and outer cylindrical surface, taper surface, end face, grooving and cutting.

Vertical turning lathe VTL machines is suitable for high speed steel and carbide cutting tools.Machine casting materials are HT250 high quality cast iron. After two times aging treatment of heat aging and vibration aging, the internal stress of castings is eliminated. The beams, columns and ram rails are treated by frequency quenching. Vertical turning lathe vtl machines have higher economic applicability, suitable for various kinds of complex rotary surfaces , but can also be thread processing.Welcome to contact us for cnc vertical lathe price.

Single column and double column cnc vertical lathe type:

C5112/C5116/C5118/C5120/C5123/C5126

C5225/C5232/C5240/C5250/C5263

Technical specification of single column vertical turning lathe VTL machines C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm
