CNC vertical turret lathes machine CK5112

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.CK5112

BrandShengyong

TypeVertical Lathe

Processing AccessoryChuck CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderSingle-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeCNC

Automatic GradeSemiautomatic

Setting ModeTable

PrecisionPrecision

CertificationISO 9001

ConditionNew

Maximum Height Of Workpiece1000mm

Table Diameter1000mm

Maximum Turning Diameter1250 Mm

Maximum Weight Of Workpiece3.2 T

Additional Info

Packagingon request

Productivity5 set/month

TransportationOcean

Place of OriginHengshui City,Hebei Province

Supply Ability5 set/month

CertificateISO&CE

Payment TypeL/C

IncotermFOB

Delivery Time45 Days

Product Description

vertical turret lathe

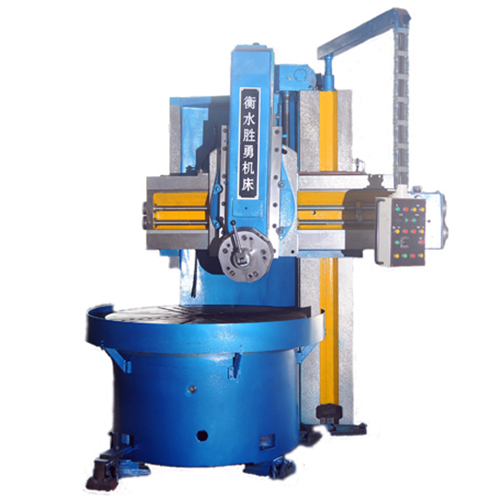

Product name :CNC Vertical Turret Lathes machine CK5112

Feature of CNC vertical turret lathes machine CK5112

Vertical Lathe Machine VTL Machines have the conventional type and CNC type. The conventional type is represented as [C51-" and NC type represented as [CK51-".

The worktable spindle is centered by high precision double-row short cylindrical roller bearing of which the radial clearance is adjustable,the worktable is equipped with unloading hydrostatic guideway. It is helpful to achieve a high rotary accuracy,large loading and small heat deformation.

Horizontal and vertical rapid feed could be a continuously variable speeds through AC servo driving.


CNC machine adopt SIEMENS or FANUC system. It can be provided on user`s requirement. CNC Vertical Turret Lathe machine can be carried out turning inner&outer cylinder surface,cone surface, grooving, drilling,tapping and reaming etc process machining.

Vertical Turret Lathe machines VTL machine model:

CK5112/CK5116/CK5118/CK5120/CK5123/CK5125/CK5126

CK5225/CK5232/CK5240/CK5250/CK5263/ CK5235

Technical specification of CNC vertical turret lathes machine CK5112

1 Table diameter 1000 mm
2 Maximum turning diameter 1250 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 3.2 t
5 Speed change of table 6.3-200 r/min
6 Rotation speed of work table 16
7 Feed rates 0-1000 mm/min
8 Step stepless
9 Horizontal travel of tool post 700 mm
Vertical travel of tool post 650 mm
10 Horizontal travel of side cutter bar 600 mm
Vertical travel of side cutter bar 800 mm
11 Crossrail travel 500 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 22 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Rapid travelling speed of tool post 2000 mm/min
16 Machine weight 9.5 t
17 Overall dimensions(L×W×H) 2460×2380×3000 mm

Features of VTL vertical turret lathe machine:
Vertical Turret Lathes

Vertical Turret LathesVertical Turret Lathes

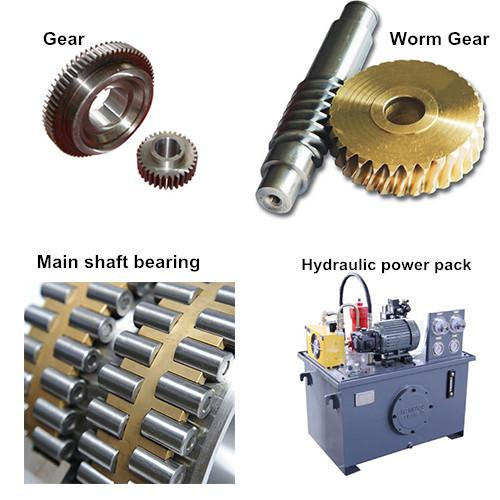

Accessories

vertical turret lathe

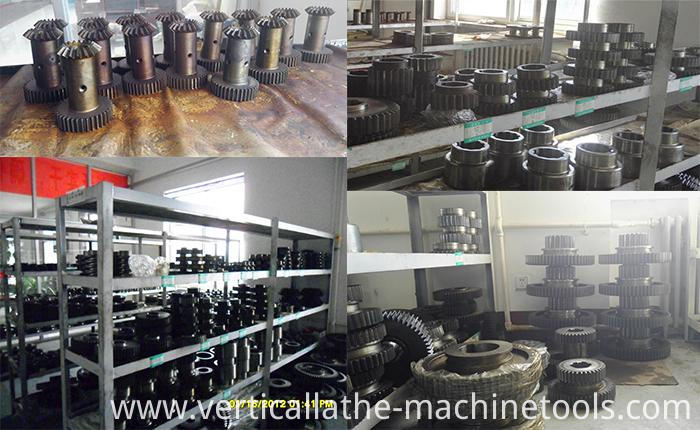

Warehouse

vertical turret lathe

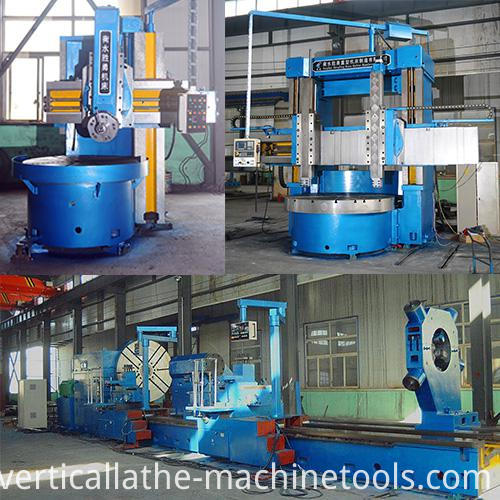

Workshop

vertical turret lathe

Customer

vertical turret lathe

Looking for ideal Vertical Turret Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Cnc Machines are quality guaranteed. We are China Origin Factory of Cnc Vertical Lathe. If you have any question, please feel free to contact us.
