Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: CK5112
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: Used
Maximum Height Of Workpiece: 1000mm
Table Diameter: 1000mm
Maximum Turning Diameter: 1250mm
Maximum Weight Of Workpiece: 3.2ton
Packaging: 28
Productivity: ON REQUEAT
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB

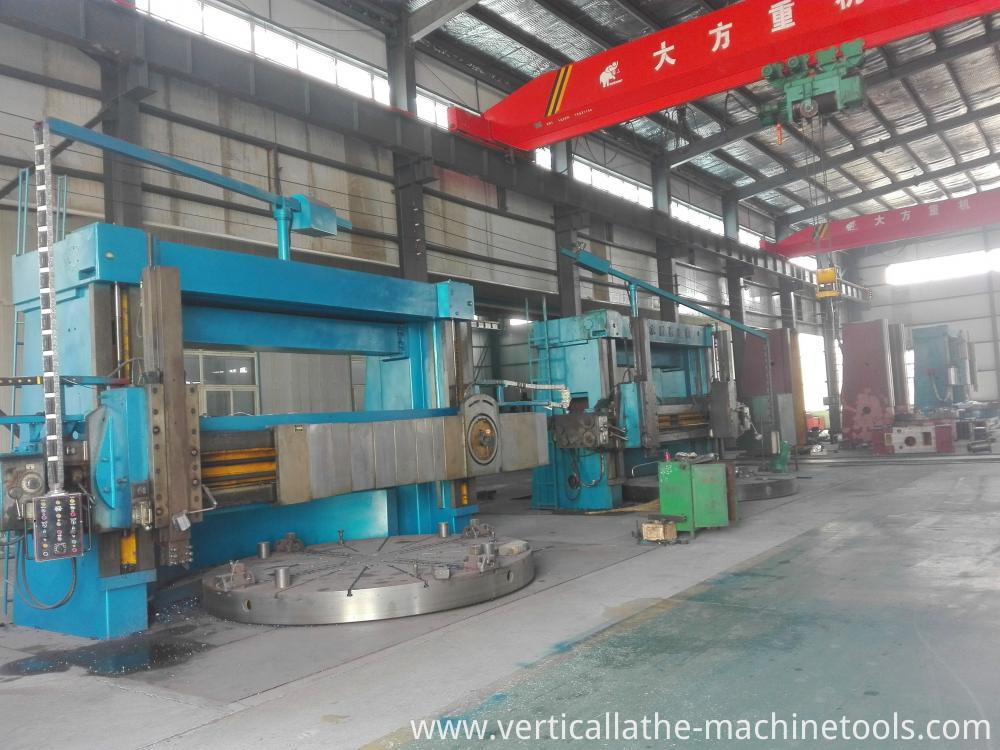

Features of VTL Lathe Machine:
1 Main shaft of workbench is centered by the high precision and adjustable diametral clearance biserial short cylindrical roller bearing.
2 Beam is made from high-strength cast iron and adopt resin sand process
3 All the guideways will arrange hand scraping after heat-treated,improving the abrasion resistance and service life of guideway.
Technical specification of CNC Vertical Turret Lathes VTL machine CK5112
1 Table diameter 1000 mm
2 Maximum turning diameter 1250 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 3.2 t
5 Speed change of table 6.3-200 r/min
6 Rotation speed of work table 16
7 Feed rates 0-1000 mm/min
8 Step stepless
9 Horizontal travel of tool post 700 mm
Vertical travel of tool post 650 mm
10 Horizontal travel of side cutter bar 600 mm
Vertical travel of side cutter bar 800 mm
11 Crossrail travel 500 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 22 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Rapid travelling speed of tool post 2000 mm/min
16 Machine weight 9.5 t
17 Overall dimensions(L×W×H) 2460×2380×3000 mm
Product Categories : Vertical Turret Lathes
