Cnc single frame vertical lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.CK5123


TypeVertical Lathe

Processing AccessoryCentre CNC Lathe

Guide RailInclined Guide Rail

Tool HolderSingle-tool Holder CNC Lathe

Power SourceManual

Controlling ModeArtificial

Automatic GradeManual

Setting ModeTable

PrecisionNormal Precision

CertificationISO 9001


Maximum Height Of Workpiece1300mm

Table Diameter2000mm

Maximum Turning Diameter2300mm

Maximum Weight Of Workpiece8 Ton

Additional Info

Packagingas request

Productivity5 set


Place of OriginChina

Supply Ability5 set /month


Payment TypeL/C


Delivery Time28 Days

Product Description

Cnc single frame vertical Lathe Machine is applicable to the process a range of short-axis category, disc and complex shape. This series single frame vertical lathe is appropriate for machining motor,turbine, aerospace and mining etc. Cnc single frame vertical lathe can meet rough and accuratly turning the inner and external cylindrical surface, cone-shaped surface, plane and head face.The single frame vertical lathe CK5123 is a super rigid machine with big machining capacities, stable structure and good machining efficiency.

Single frame vertical lathe model:


Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm

Maximum height of workpiece: 1000//1200/1300/1350 mm

Maximum weight of workpiece 3.2 / 5 / 6 / 8 / 10 t

Single frame vertical lathe

Technical specification of Cnc single frame Vertical Lathe Machine CK5123

1 Table diameter 2000mm

2 Maximum turning diameter 2300mm

3 Maximum height of workpiece 1300mm

4 Maximum weight of workpiece 8 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1250mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 650mm

Vertical travel of side cutter bar 1000mm

11 Crossrail travel 750mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 19.5 t

16 Overall dimensions(L×W×H) 3300×3280×4000 mm

Recommend other models vertical lathe

Single frame vertical lathe

Single frame vertical lathe

Looking for ideal Cnc Single Frame Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Single Frame Vertical Lathe are quality guaranteed. We are China Origin Factory of Cnc Lathe Single Frame Vertical. If you have any question, please feel free to contact us.

Product Categories : Vertical Turret Lathes

Product Images

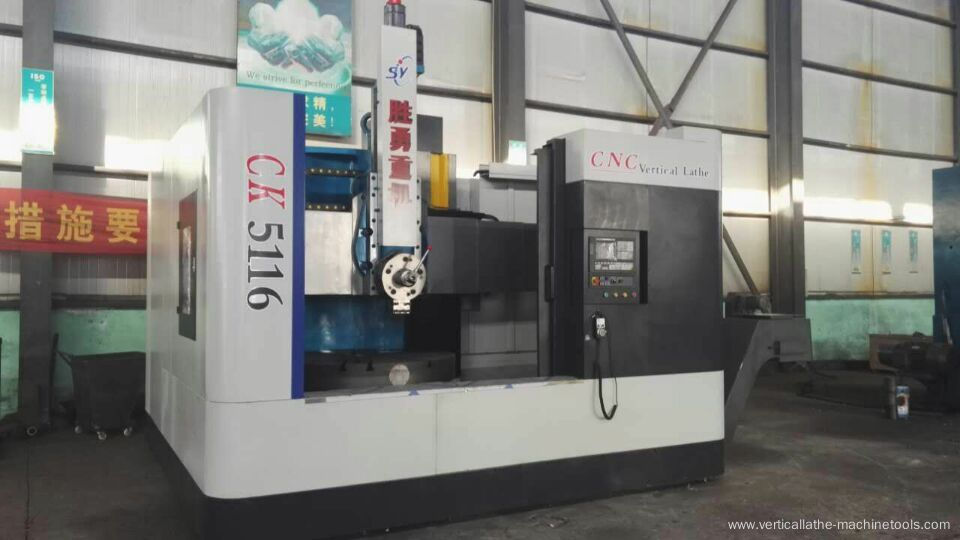

  • Cnc single frame vertical lathe machine

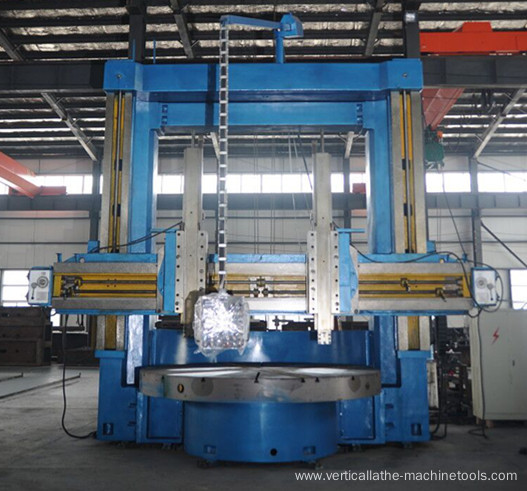

  • Cnc single frame vertical lathe machine

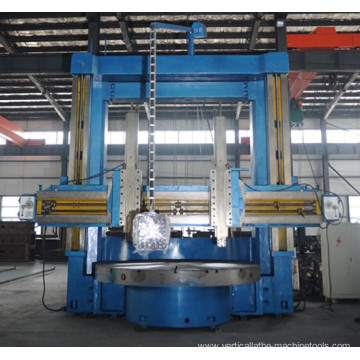

  • Cnc single frame vertical lathe machine

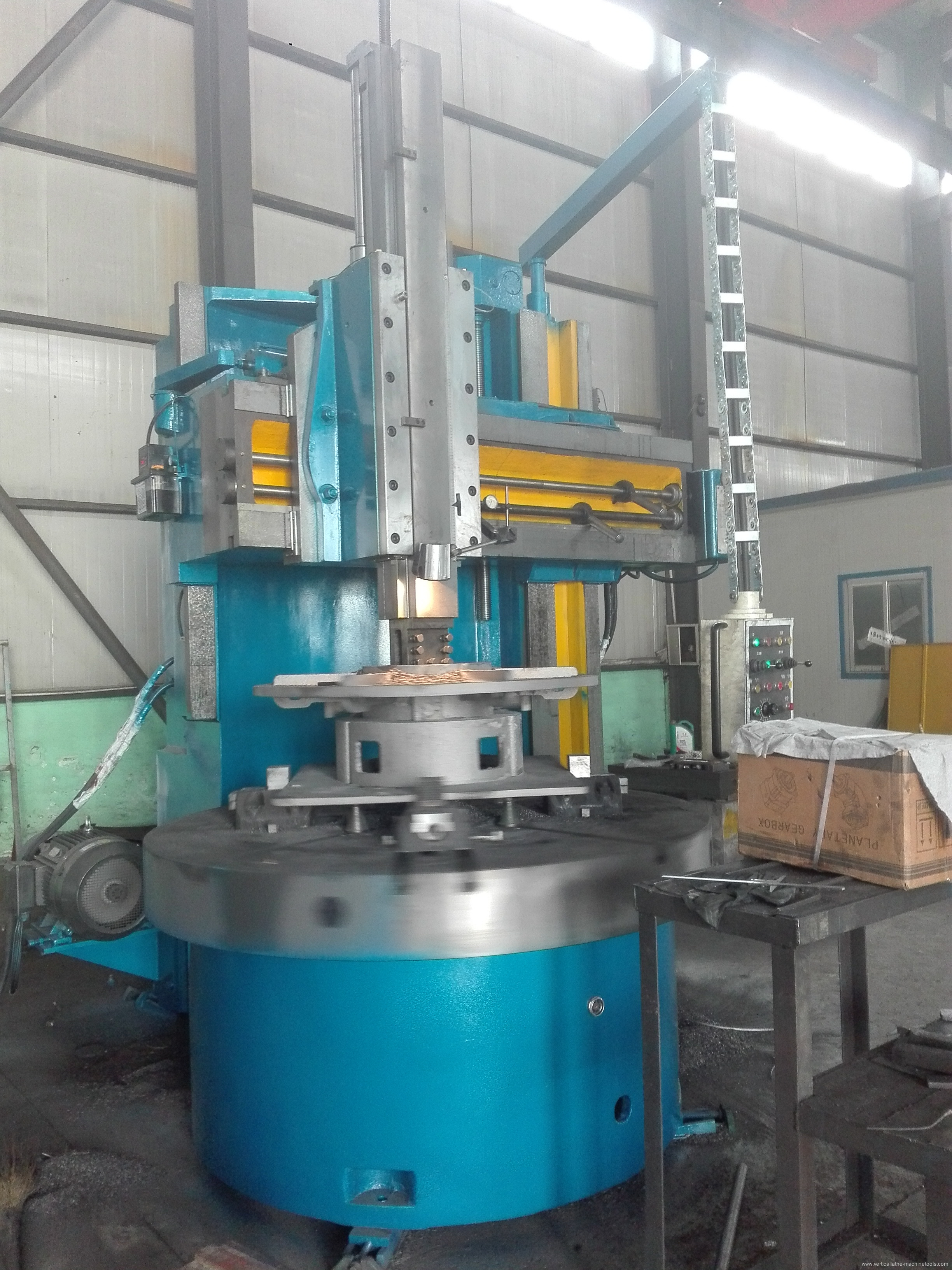

  • Cnc single frame vertical lathe machine

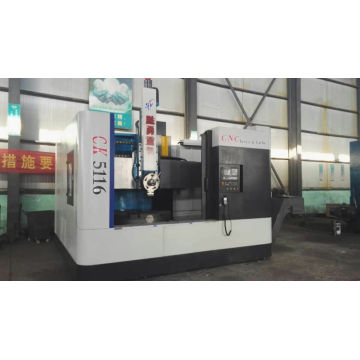

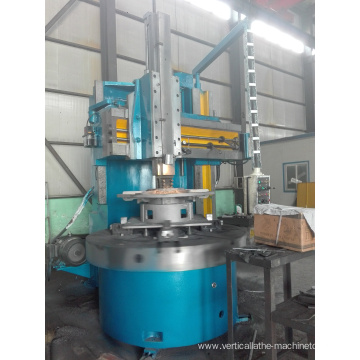

  • Cnc single frame vertical lathe machine
