Cheap manual torno vertical for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.C5112

BrandShengyong

TypeVertical Lathe

Processing AccessoryChuck CNC Lathe

Guide RailInclined Guide Rail

Tool HolderSingle-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeArtificial

Automatic GradeManual

Setting ModeTable

PrecisionNormal Precision

CertificationISO 9001

ConditionNew

Maximum Height Of Workpiece1000mm

Table Diameter1000mm

Maximum Turning Diameter1250mm

Maximum Weight Of Workpiece3.2 T

Additional Info

Packagingas request

Productivity5 set

TransportationOcean

Place of OriginChina

Supply Ability5 set /month

CertificateISO9001

Payment TypeL/C

IncotermFOB

Delivery Time28 Days

Product Description

Where to buy vertical lathe vtl machine ? We can supply different vertical lathe type. Vertical lathe,including manual torno vertical and Cnc Vertical Lathe,is appropriate for steel and ceramic cutting implement, machining inner cylindrical surface and outer cylindrical surface, inner and outer cone-shaped surface, groove and plane surface of metal metals, nonferrous metals and a few non-metallic components.

The vertical lathe type can be applied to several industries like rubber machinery , mine machinery,,automobile producing ,aviation,construction and chemical machinery so on.

Advantage of manual torno vertical:

1 Working table uses hydrostatic guide way.

2 Convenient Centralized oil lubricating supplying

3 Castings are made of HT250 grey cast iron (ram is made of ductile iron) which is treated with artificial heat ageing, high-quality processing and improved assembly process.

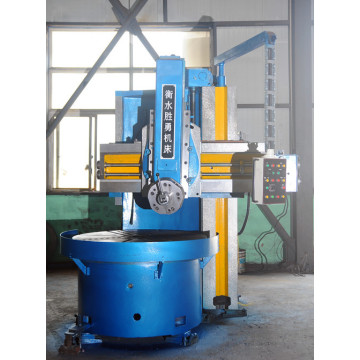

Manual torno vertical

Technical specification of Cheap manual torno vertical for sale C5112

1 Table diameter 1000 mm

2 Maximum turning diameter 1250 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 3.2 t

5 Speed change of table 6.3-200 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 700 mm

Vertical travel of tool post 650 mm

10 Horizontal travel of side cutter bar 600 mm

Vertical travel of side cutter bar 800 mm

11 Crossrail travel 500 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 9.5 t

17 Overall dimensions(L×W×H) 2460×2380×3000 mm

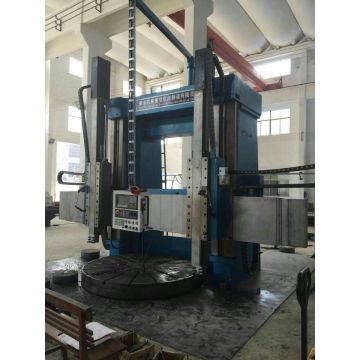

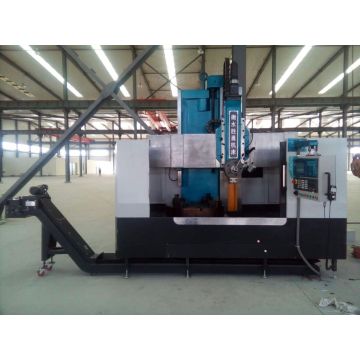

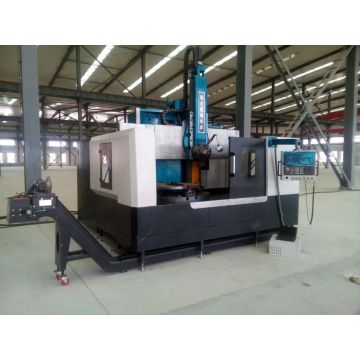

Different kinds of vertical lathe type in stock

Where to buy vertical lathe

Where to buy vertical lathe

Where to buy vertical lathe

Looking for ideal Vertical Lathe Type Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Where to Buy Vertical Lathe are quality guaranteed. We are China Origin Factory of Manual Torno Vertical. If you have any question, please feel free to contact us.
