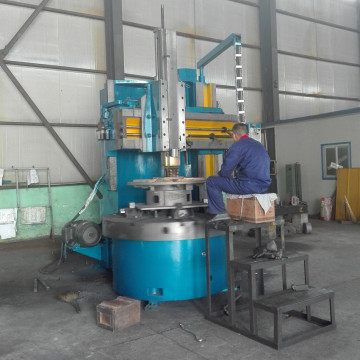

Conventional vertical turret lathe

Conventional Vertical Turret Lathes are suitable for machining in various industries, and the VTL vertical lathe can be used for rough and fine turning of internal and external cylindrical surface, taper surface, end face, grooving, cutting and so on.

Conventional vertical turret lathes product characteristics:

1 The vtl vertical lathe has advanced processing and assembly process, good quality casting.Casting does not do weight loss treatment, the whole weight matches standard weight.

2 Vtl vertical lathe table adopts high-power DC motor to stepless speed regulation to achieve high torque rotation with constant linear speed turning function.

3 The conventional vertical turret lathes electric appliance adopts PLC control with good reliability.

4 100% full manual operation function, convenient and practical operation.

Technical specification of conventional Vertical Turret Lathe C5123

1 Table diameter 2000mm

2 Maximum turning diameter 2300mm

3 Maximum height of workpiece 1300mm

4 Maximum weight of workpiece 8 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1250mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 650mm

Vertical travel of side cutter bar 1000mm

11 Crossrail travel 750mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 19.5 t

16 Overall dimensions(L×W×H) 3300×3280×4000 mm
