| Payment Type: | L/C |
|---|---|
| Incoterm: | FOB |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Model No.: CW61315
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Setting Mode: Table
Precision: Precision
Certification: ISO 9001
Condition: New
Maximum Swivel Diameter On The Bed: 3150mm
Maximum Turning Diameter Over Carriage: 2500 Mm
Maximum Length Of Workpiece: 140 Dm
Maximum Weight Between Center: 80t
Packaging: on request
Productivity: 3 set
Brand: Shengyong
Transportation: Ocean
Place of Origin: China
Supply Ability: 3 set /month
Certificate: ISO9001

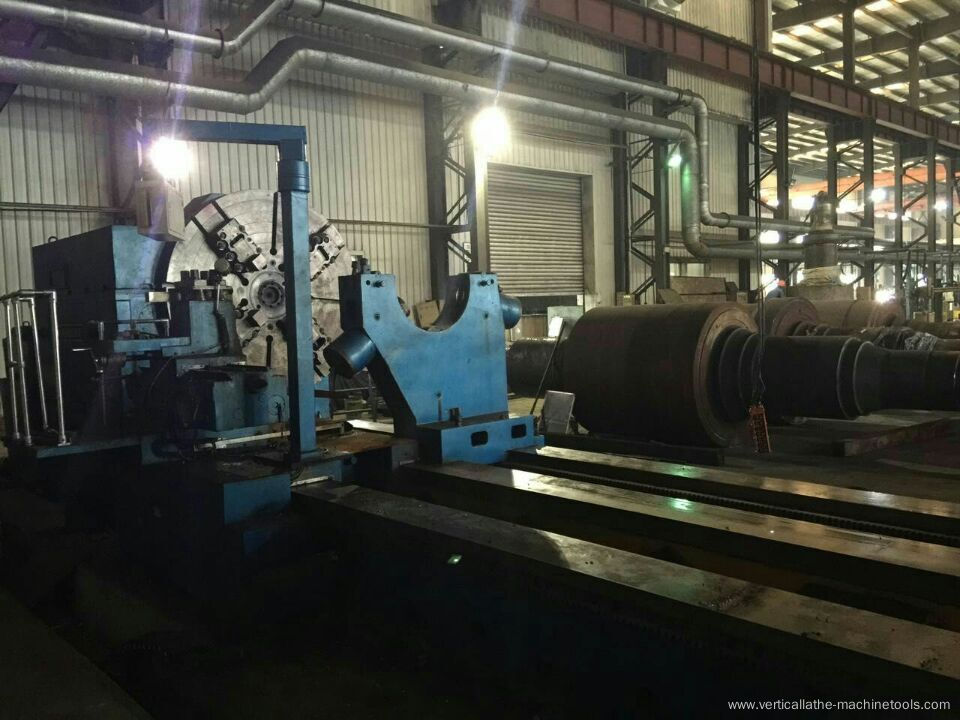

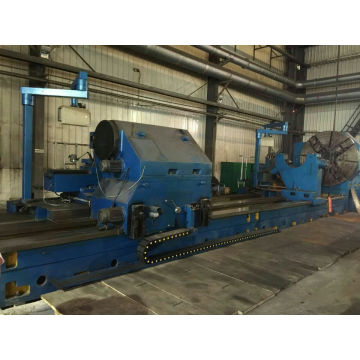

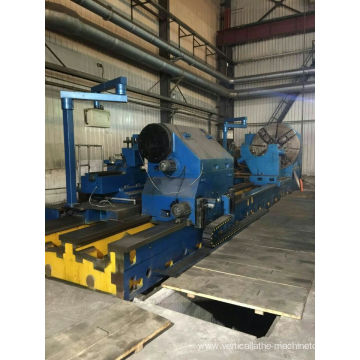

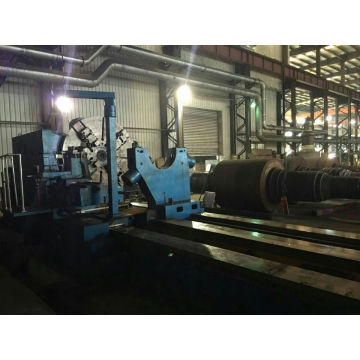

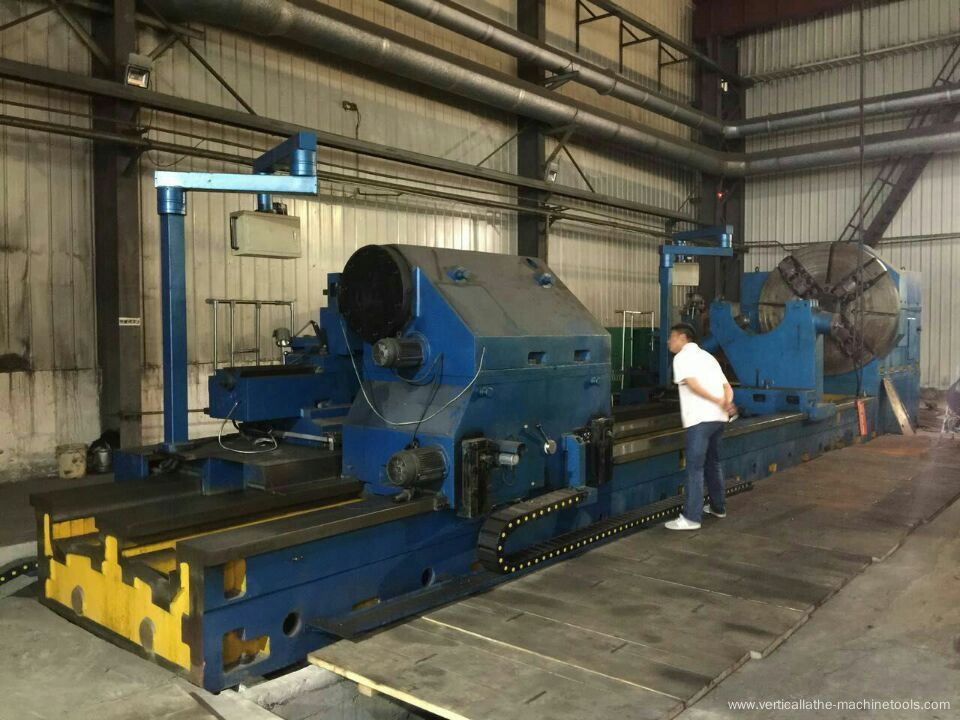

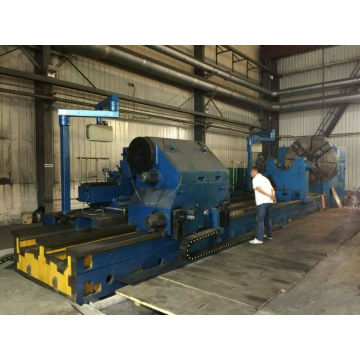

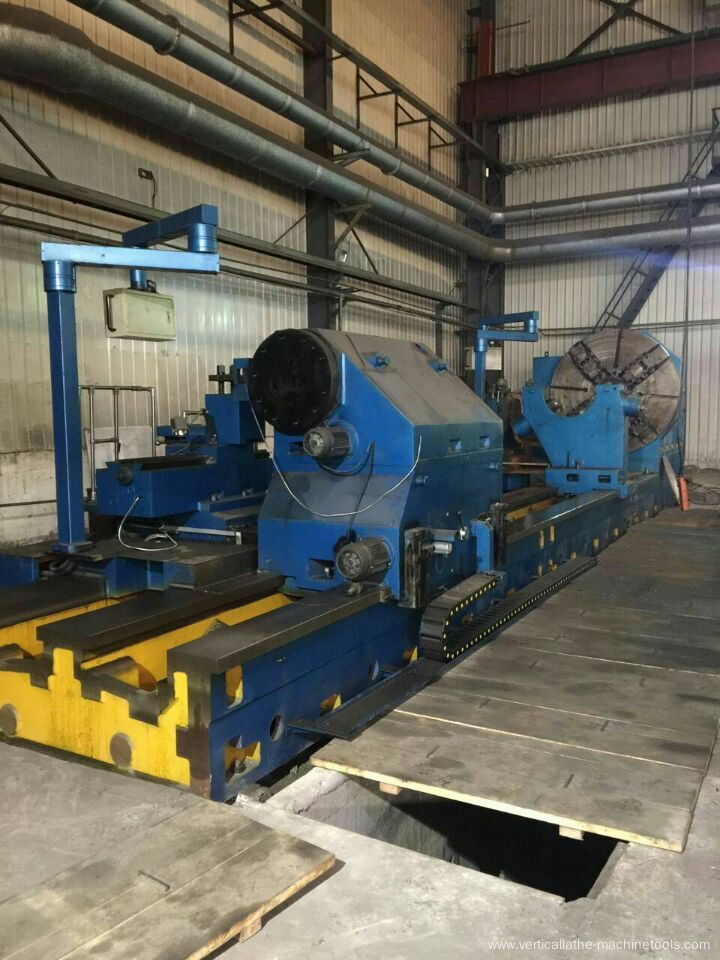

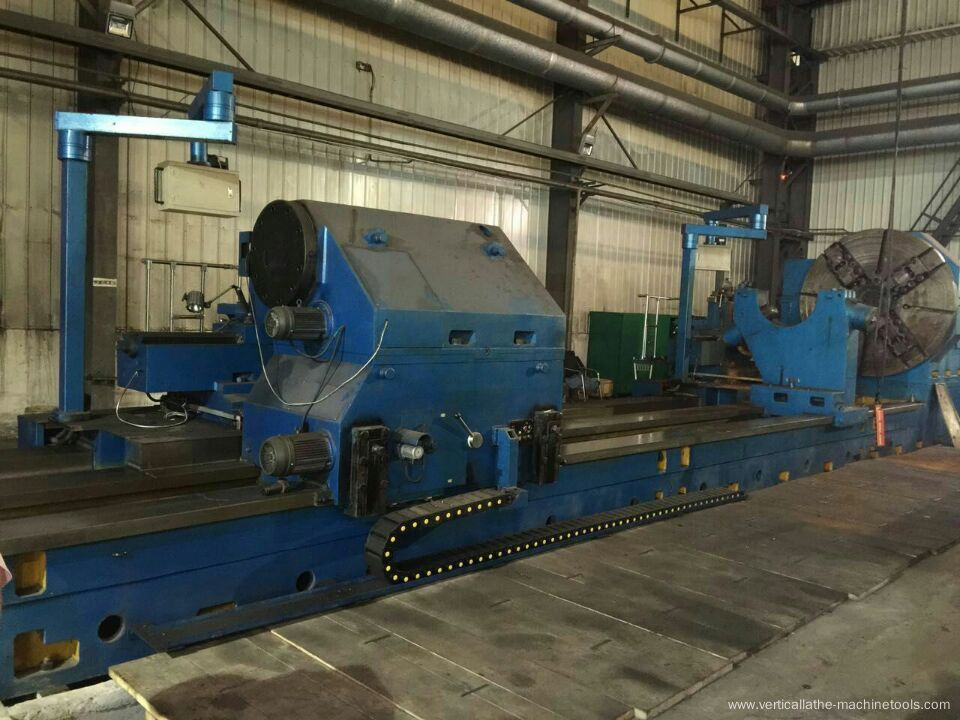

CNC Big Bore Flat Bed Lathes features high precision, high power and high rigidity. Big Bore CNC Lathe main components and structures have been optimized,fit for processing axis, disk,special-shaped surface and screw type workpieces. Combinations surface between head box,bed and tailstock is hand scraping research,Whole CNC Big Bore Flat Bed Lathes uses laser interferometer to detect,effectively guarantee the Z axis. X axis positioning accuracy and repeat positioning accuracy.
Technical specification of CW61315 CNC Big Bore Flat Bed Lathes
1 Maximum swivel diameter on the bed 3150 mm
2 Maximum turning diameter over carriage 2500 mm
3 Maximum length of workpiece 140 dm
4 Maximum weight between center 80t
5 Diameter of faceplate 2600mm
6 Maximum torque of faceplate 160KN.m
7 Range of spindle speeds 0.5-100 r/min
8 Maximum cutting force of carriage 90 KN
9 Total cutting force 160 KN
10 Range of feed rates ( long) 0.265-500 mm/min
11 Range of feed rates(Trans ) 0.106-200 mm/min
12 Range of feed rates(longitudinal) 0.053-100 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1200 mm/min
15 Scale of tool bar section 100×100mm
16 Power of main motor DC:125KW
17 Machine weight(Approx) 138 T
18 Overall dimensions(L×W×H) 2328×894×407cm
Product Categories : CNC Heavy Duty Horizontal Lathe
