Heavy Duty Horizontal lathes for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.CK61160

BrandShengyong

TypeHorizontal Lathe

Processing AccessoryCentre CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderDouble-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeCNC

Automatic GradeSemiautomatic

Setting ModeFloor-type

PrecisionNormal Precision

CertificationISO 9001

ConditionNew

Maximum Swivel Diameter On The Bed1600mm

Maximum Turning Diameter Over Carriage1250mm

Maximum Length Of Workpiece120dm

Maximum Weight Between Center40ton

Additional Info

Packagingon request

Productivity5 set

TransportationOcean

Place of OriginChina

Supply Ability5 set /month

CertificateISO9001

PortTianjin

Payment TypeL/C

IncotermFOB

Delivery Time30 Days

Product Description

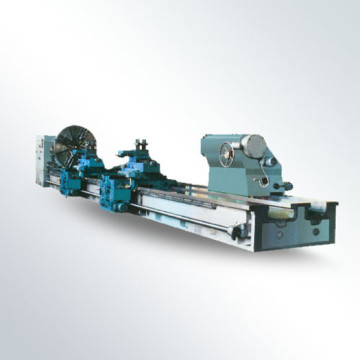

The machine is CNC heavy-duty horizontal lathe for high-speed steel and carbide cutting tools.Horizontal Lathes are suitable for different materials of shaft parts, cylindrical and disc-shaped parts, turning the cylindrical, end, cut, boring inside and outside the cone, and a variety of threads.
Horizontal lathe adopts high-grade cast iron for forming and casting. After the second aging treatment, the stability is good. The guide rail rigidity is good and the vibration resistance is strong.Horizontal lathe is a modular design, with a strong technical and more stable performance. Horizontal lathes can be widely used in petrochemical industry, heavy machinery industry and automobile manufacturing.

Horizontal Lathe

Technical specification of Heavy Duty horizontal lathe for sale CK61160

1 Maximum swivel diameter on the bed 1600mm

2 Maximum turning diameter over carriage 1250mm

3 Maximum length of workpiece 80/100/120 dm

4 Maximum weight between center 20/40 t

5 Diameter of faceplate 1600mm

6 Maximum torque of faceplate 80KN.m

7 Range of spindle speeds r/min 1-200r/min

8 Maximum cutting force of carriage 80 KN

9 Range of feed rates ( long) 2-4500 mm/min

10 Range of feed rates( transverse ) 2-4500 mm/min

11 Rapid speed of of carriage( long) 4500 mm/min

12 Rapid speed of of carriage( transverse ) 4500 mm/min

13 Horizontal travel of tool post 675 mm

14 Travel of tailstock quill 300mm

15 Power of main motor 75KW

16 Machine weight(Approx) 100 t

17 Overall dimensions(L×W×H) 1500×490×275 cm

More horizontal lathes for sale in stock

Horizontal LatheHorizontal LatheHorizontal Lathe

Looking for ideal Horizontal Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Horizontal Lathe are quality guaranteed. We are China Origin Factory of Horizontal Lathes for Sale. If you have any question, please feel free to contact us.
