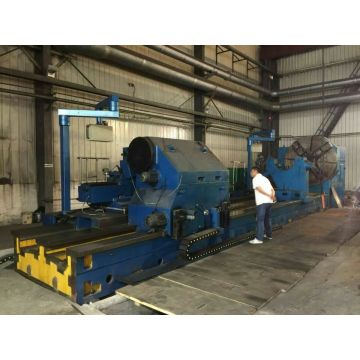

Light Horizontal Lathe machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.CK61100EXL/6

BrandShengyong

TypeHorizontal Lathe

Processing AccessoryCentre CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderDouble-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeCNC

Automatic GradeAutomatic

Setting ModeTable

PrecisionNormal Precision

CertificationISO 9001

ConditionNew

Max.turning Diameter Over Carriage630mm

Bed Ways TypeIntegral Two Guideways

Max. Workpiece Length30/40/50/L Dm

Max.swivel Diameter On The Bed:1000mm

Additional Info

Packagingas request

Productivity3 set

TransportationOcean

Place of OriginChina

Supply Ability3 set/year

CertificateISO9001

PortTianjin

Payment TypeL/C

IncotermFOB

Delivery Time30 Days

Product Description

Light horizontal lathe is a kind of horizontal CNC lathes,Light horizontal lathe can achieve constant linear speed turning on various steel, cast steel, cast iron, non-ferrous metals and non-metallic materials, processing internal and external cylindrical surface, curved rotation surface.Horizontal cnc lathes can also process all kinds of threads: bore and metric thread, inch thread, modulus thread and pitch thread. Light Horizontal Lathe can be equipped with other functional components to do boring and grinding.The Horizontal Lathe Machine for sale is widely used in energy, transportation, metallurgy, aerospace, military and other heavy machinery manufacturing industry, such as steam turbine rotor,turbine shaft, heavy roll, machine spindle etc.

Light Horizontal Lathe


Horizontal Lathe Machine for sale CK61100EXL/6 Parameter

Max.swivel diameter on the bed:1000mm

Max.turning diameter over carriage:630mm

Bed ways type :Integral two guideways

Max. workpiece length: 30/40/50/L dm

Max. workpiece weight :6 ton

Machine center height: 510 mm

Dia of faceplate :800/1000 mm

Max.torque of faceplate :15KN.m

Number of spindle speeds: No(21)Step

Range of spindle speeds:3.15-315r/min

Max cutting force of carriage: 40KN

Knife feed range of spindle per revolution;Z axis,X axis:0.1-1000mm/min

Rapid speed of carriage:4000mm/r

Travel of tailstock sleeve:300mm

Main motor power:22kw

Machine weight(Approx):11.5ton(L=30)

Recommend horizontal lathe machine for sale

Horizontal lathe machine for sale

Horizontal lathe machine for saleHorizontal lathe machine for sale


Looking for ideal Light Horizontal Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Horizontal CNC Lathes are quality guaranteed. We are China Origin Factory of Horizontal Lathe Machine for Sale. If you have any question, please feel free to contact us.
