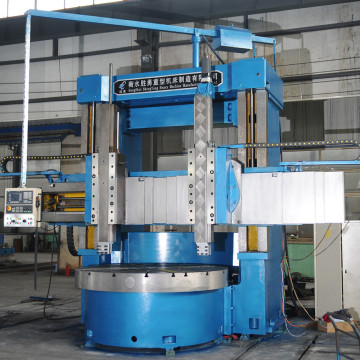

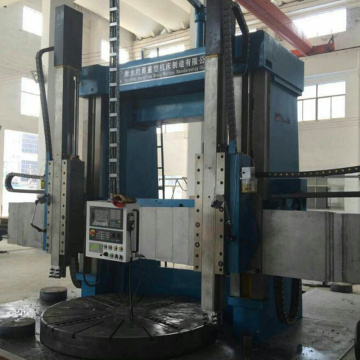

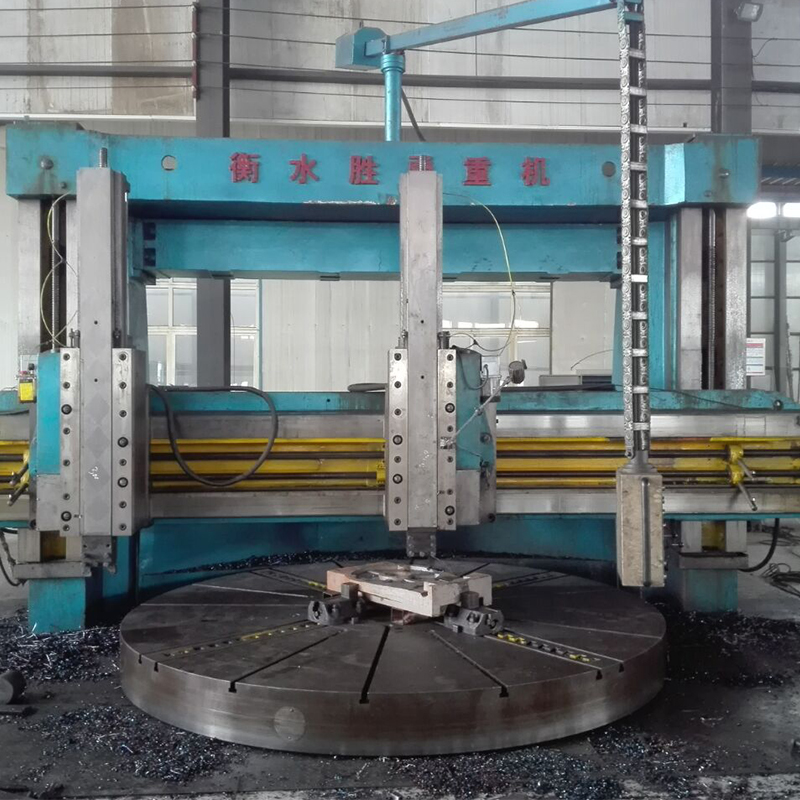

Conventional double column vertical turning lathe

Conventional double column vertical lathe is designed with large load, high stability and high rigidity.Conventional vtl is suitable for hard alloy and high speed steel cutting tools,machining ferrous metals, non-ferrous metals and some non-metallic material parts.

Conventional vtl has the characteristics of large rigidity, long service life, good seismic resistance and high reliability.Conventional vtl is widely used in a variety of disk, shell parts of the turning,such as brake discs, wheels,bearing rings, gears and other parts of the rough and semi-finishing.

Conventional double column vertical lathe can complete the following processes:
1 Turning inside and outside cylindrical surface and plane surface,kinds curved surfaces.
2 Turning inside and outside cone surface.
3 Grooving.

Technical parameters of conventional double column Vertical Turning Lathe C5240
Table diameter:Φ3150 mm
Maximum turning diameter:Φ4000 mm
Maximum height of workpiece:1600-3200mm
Maximum weight of workpiece:10/20/32 ton
Maximum cutting torque of table:63000 N.m
Step of table rotation:16 step
Speed range of table:2-40 r/min
Feed step:18 step
Range of feed rates:0.25-90mm/min
Rapid travelling speed of tool post:1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post:2150mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed :350mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50mm
Power of main motor:55/75 KW
Overall dimensions (L×W×H ):6680×4600×4952 mm
Machine weight ( approx ):43-65ton
