Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: CK5240
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Inclined Guide Rail
Tool Holder: Double-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Manual
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Table Diameter: 3150 Mm
Maximum Turning Diameter: 4000mm
Maximum Height Of Workpiece: 3000 Mm
Maximum Weight Of Workpiece: 32000kg
Packaging: as request
Productivity: 5 set
Transportation: Ocean
Place of Origin: Hengshui
Supply Ability: 5 set /month
Certificate: ISO9001
Port: Tianjin
Payment Type: L/C
Incoterm: FOB

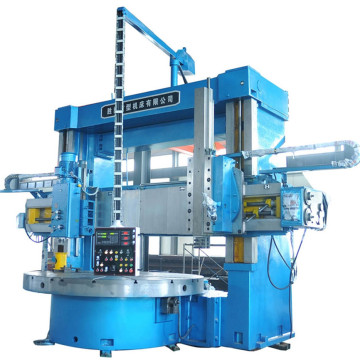

The main purpose of the double column Vertical Lathe Machine is a semi-automatic multi tool lathe.Vertical Lathe Machine has two tool holders and can hold more than one tool at the same time.The vertical lathe machine can automatically finish many kinds of processes such as turning the inner circle end face and chamfering.Vertical lathe machine is widely used in rough machining and semi finishing of gear and disc parts in batch processing.
Our new Vertical Turret Lathe is suitable for high-speed steel cutting tools and carbide cutting tools ,processing all kinds of ferrous metals, non-ferrous metals and some non-metallic materials.New vertical turret lathe can be turning the cylindrical surface, the outer cylindrical surface, the inner surface, the inner conical surface, the outer conical surface and the grooving, and reaming.
Vertical turret lathe uses closed gantry frame and the structure size and stress state are optimized by finite element analysis. Vertical turret lathe uses domestic and foreign advanced design technology, the left and right columns are not connected with the table base, respectively, fixed on the foundation, eliminating the mutual effect of spindle drive and feed drive and thermal deformation,improving the rigidity, and is easy to adjust the accuracy.
Technical specification of New vertical turret lathe Vtl cnc for sale CK5240
1 Maximum turning diameter 4000 mm
2 Maximum Height of workpiece 1600/2000/2500/3000 mm
3 Maximum Weight of workpiece 10/20/32 t
4 Table diameter 3150 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 2150 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55/75
11 Machine weight(about) 42-58t
12 Overall dimensions(L×W×H) 8010×4400×4680mm
8010×4400×5080mm
8010×4400×5600mm
8010×5569×6230mm
Recommend new vertical turret lathe in workshop for sale
