Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Bag/Bags |
Brand: hengshui shengyong
Name: Cast Iron Surface Plate
Other Name: Cast Iron Platform
Packaging: wooden packing
Productivity: 90 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 90 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB

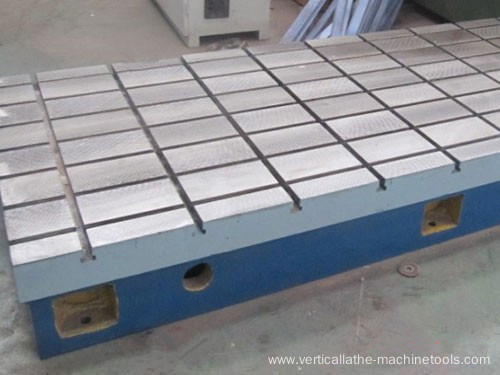

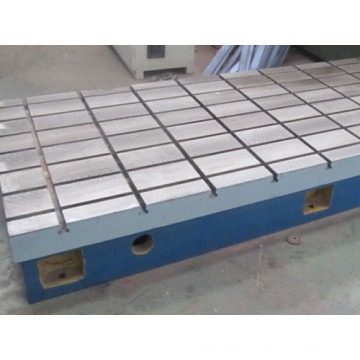

Cast Iron Surface Plate is widely employed in tool shop, repair shop,large equipment base,measurement and precision processing inspection. It has precise measurement standards to test the flatness, straightness and the tolerance value of angle detection, etc.
The materials of Cast iron surface plate is HT200-300, working surface hardness HB170-240 treated by artificial annealing and natural aging 2-3 years. It features precision stability and good wear resistance.
The concept of design cast iron surface plate is to use lowest cost to achieve the best effect, Cast iron surface plate is generally rectangular or square in shape.National standards also provides a circular and annular shape.But circular and annular shape cast iron surface plate still needs to be customized.
Specification of Cast iron surface plate for sale
Specification (L*W)mm
| Accuracy grade | ||
| 1 grade | 2 grade | 3 grade |
| Flatness tolerance (um) | ||
1000×750 | 18 | 36 | 90 |
1000×1000 | 20 | 39 | 96 |
1000×1200 | 20 | 40 | 100 |
1000×1500 | 24 | 48 | 120 |
1000×2000 | 26 | 52 | 130 |
1500×2000 | 28 | 56 | 140 |
1500×2500 | 32 | 64 | 152 |
Recommend Cast iron surface plate for sale and Lineation Surface Plates
