Unit Price: | USD 50000 - 90000 / Set/Sets |
---|---|
Payment Type: | L/C |
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: CK84160
Brand: Shengyong
Type: Horizontal Lathe
Processing Accessory: Centre CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Automatic
Setting Mode: Table
Precision: Normal Precision
Certification: ISO 9001
Condition: New
Maximum Turning Diameter Of Workpiece: 550-1800 Mm
Maximum Length Of Workpiece: 50dm
Maximum Weight Of Workpiece: 63ton
Height Of Center: 1050 Mm
Packaging: on request
Productivity: 5 set/month
Transportation: Ocean
Place of Origin: Hengshui City,Hebei Province
Supply Ability: 5 set/month
Certificate: ISO&CE
Payment Type: L/C
Incoterm: FOB
Roll Turning Lathe Machine is mainly processing a variety of rolls, shaft, disk and other rotary-type parts. CNC Roll turning lathe can also process cylindrical, face, bore, arc, taper, threaded and circular surface. Workpiece material may be steel, forged steel, alloy steel, chilled cast iron, alloy cast iron, ductile iron and so on.

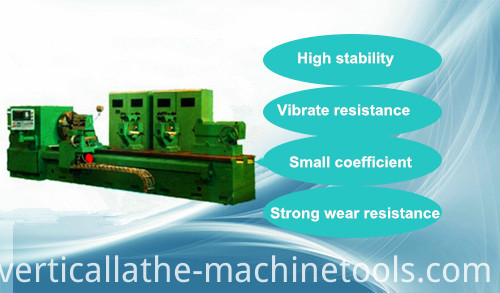

Heavy duty CNC Roll Turning Lathe machines are used for proof and finish machining of rolls in rolling mills, cement plants, paper plants & heavy industries. CNC roll turning lathe is reasonable in structure and strong in rigidity with large power and good stability. It consists of bed,turret tool holder ,hydraulic system, PLC system ,electrical cabinet,wire holder and so on. CNC roll turning lathe is the ideal product for processing all kinds of large-diameter workpieces.
Heavy duty CNC Roll turning lathe model: CK8450 CK8463 CK8463 CK8480 CK84100 CK84125 CK84160

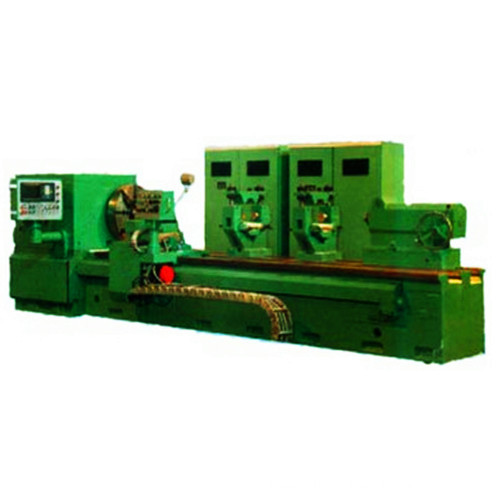

Technical specification of Heavy duty CNC roll turning lathe machines CK84160
1 Maximum turning diameter of workpiece
flat rolling : 550-1800 mm
roll pass : 550-1600 mm
2 Maximum length of workpiece 50/60/70 dm
3 Maximum weight of workpiece 63/80 t
4 Height of center 1050 mm
5 Diameter of faceplate 2000 mm
6 Maximum torque of faceplate 125 KN.m
7 Range of spindle speeds 0.4-60 r/min
8 Maximum cutting force of carriage 160 KN
9 Range of feed rates ( long) 1-4000 mm/min
10 Range of feed rates(Transverse) 1-4000 mm/min
11 Travel of tailstock quill 250 mm
12 Dimensions of mode steady supporting 350-600 mm
13 Power of main motor 100 KW
14 Machine weight(Approx) 86 t
15 Overall dimensions(L×W×H) 1680×402×241cm
