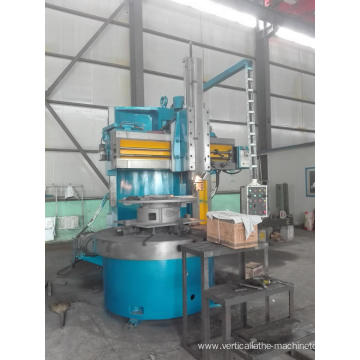

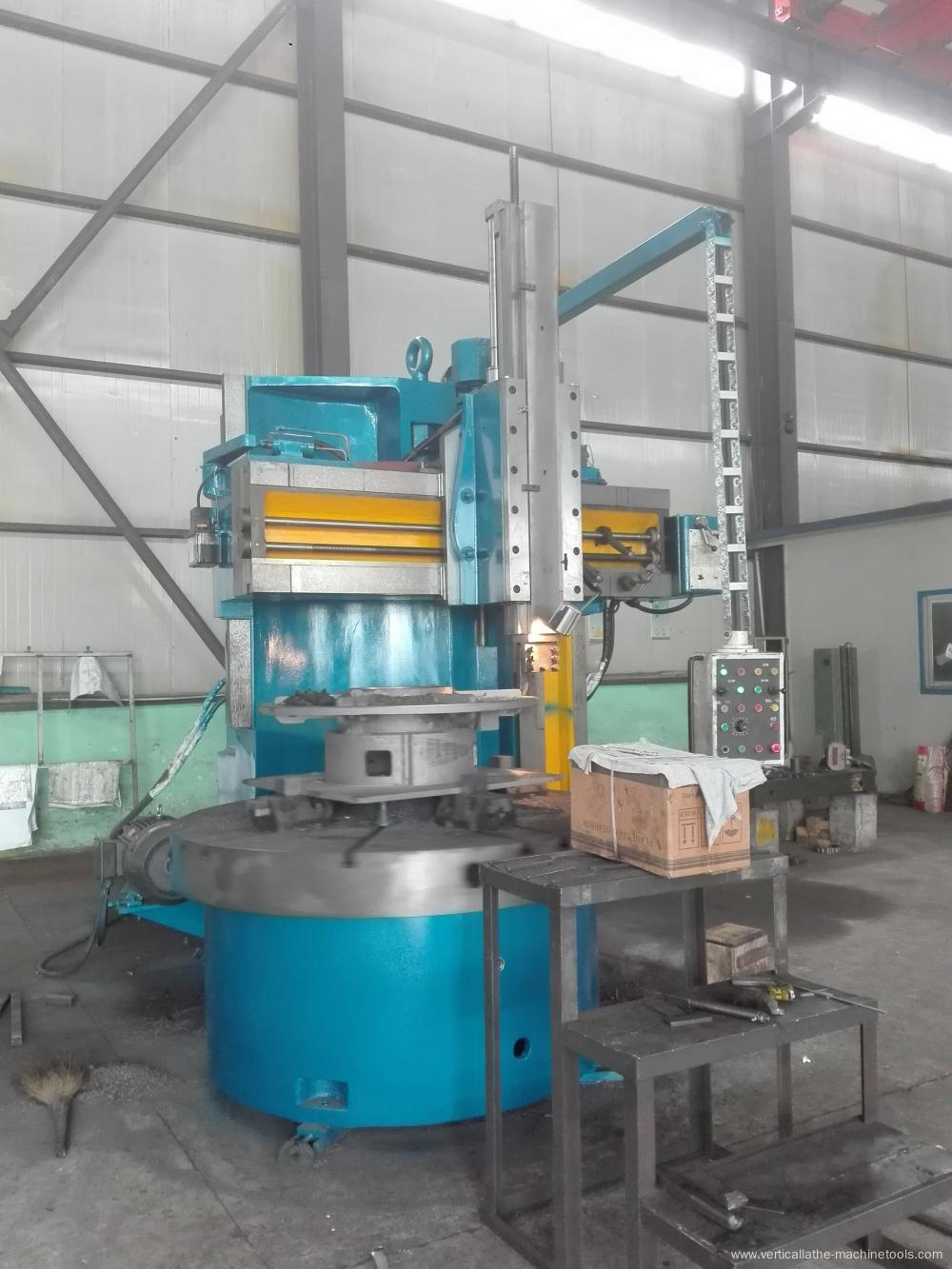

Qiqihar vertical lathe machine in stock

Qiqihar vertical Vertical turning lathes VTL machine can be used for mechanical processing such as rough and finishing machining inside and outside the cylinder, inner and outer conical surface, head face, grooving etc.

Features of Qiqihar vertical Vertical turning lathes:

Qiqihar Vertical Turning Lathe VTL Machine model: C5112/C5116/C5118/C5120/C5123/C5125/C5126

Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm

Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm

Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t

Technical specification of Qiqihar Vertical Turning Lathe machines C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 1000 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 17.5 t

16 Overall dimensions(L×W×H) 2900×2900×3800 mm

Product Categories : Vertical Turret Lathes
