Home > Products > Lathe Machine > 2 axis vertical turret lathe machines for sale

2 axis vertical turret lathe machines for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5116

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: High Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1600mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 5 Ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

CNC Vertical Turret Lathe machines is fixed column two coordinate linkage Vertical Lathe Machine. CNC Vertical Turret Lathe machines have the basic function of rough finishing such as cylindrical surface, conical surface, end surface and grooving inside and outside.CNC Vertical Lathes are adapt to high-speed steel cutting tools and carbide machining various black metal high-speed steel, non-ferrous metals and some non-metallic materials.
Our vertical turret lathe for sale main components include: base, workbench, column, ram, lubrication system, rail protection, CNC system, electrical control and so on.CNC vertical turret lathe machines are equipped with Siemens control system and AC servo motor. This series of CNC vertical turret lathe machines use modular design according to the user's special requirements.
CNC Vertical Lathes application area are widely used in military, aerospace, shipbuilding, electrical, nuclear power, wind power. Our CNC vertical lathes have good rigidity, accuracy and durability and CNC vertical lathes have been in a leading position in the China's domestic lathe market. We can supply the best Vertical Turning Lathe service.

CNC Vertical Turret Lathe Machines

Technical specification of 2 axis CNC Vertical Turret Lathe Machines for Sale CK5116

1 Table diameter 1400 mm

2 Maximum turning diameter 1600 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 915 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 12.5 t

17 Overall dimensions(L×W×H) 2800×2800×3800 mm

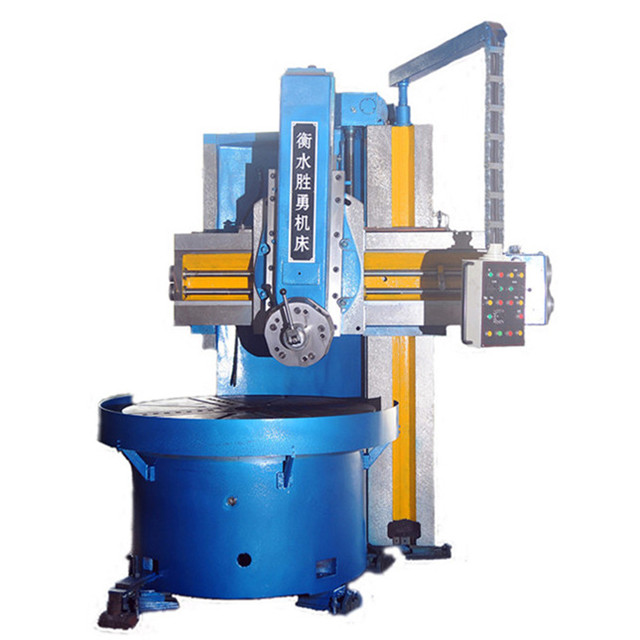

Photo of CNC vertical turret lathe machines

CNC vertical turret lathe machines

CNC vertical turret lathe machines

CNC vertical turret lathe machines

Looking for ideal Vertical Turret Lathe for Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Turret Lathe Machines are quality guaranteed. We are China Origin Factory of Vertical Turning Lathe Service. If you have any question, please feel free to contact us.

Product Categories : Lathe Machine
