Vertical Turret Lathes Machine Products

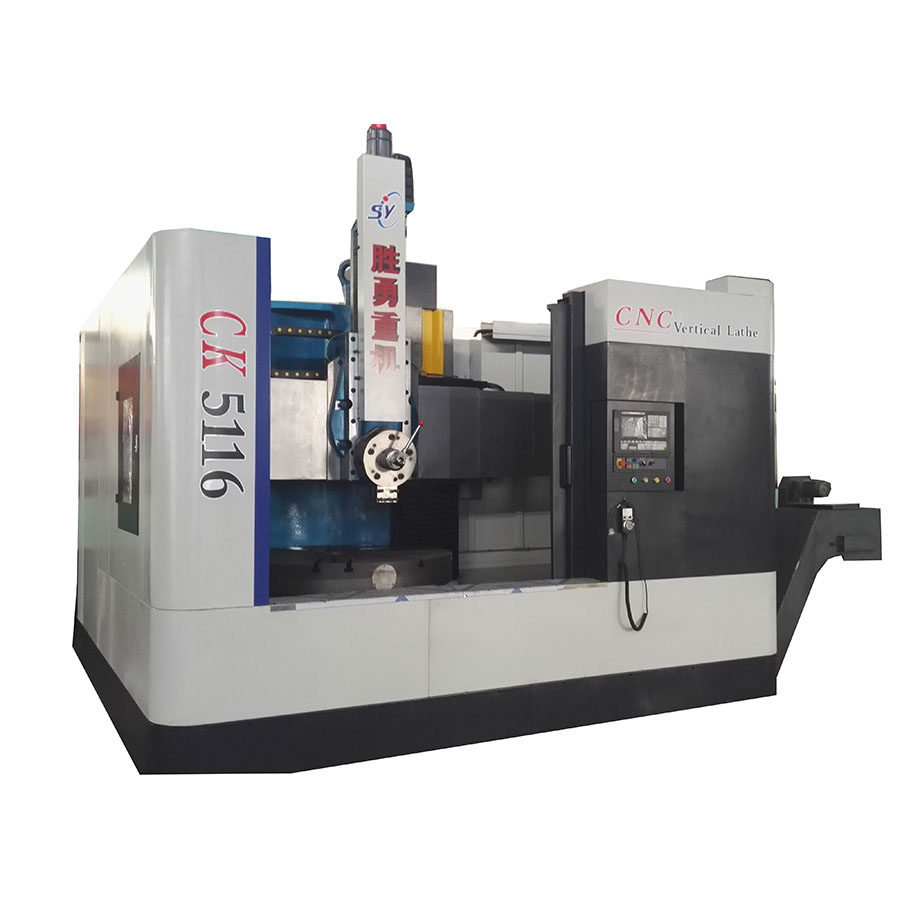

Vertical Lathe Machine is widely used, generally using high-speed steel, carbide and ceramic cutting tools. This series of vertical Lathe Machine can be used for internal and external cylindrical surface, conical surface, end face, groove and so on rough finishing.The machine is two-axis Vertical Turret Lathes products with constant speed cutting, chamfering, fixed cycle, thread cutting and other CNC machine function.Vertical lathe product can conduct turning the end face, taper thread, end thread and other turning.This series of vertical lathe products have complete machine protective cover and chip removing device. Vertical lathe product adopts closed protective structure to improve the safety and reduce the pollution to the environment. The imported parts of vertical lathe products are imported components, so that the whole has higher reliability and durability.

Vertical lathe products are a good performance, wide processing range high production efficiency of advanced equipment for the various sectors of the mechanical processing.Vertical lathe machine can meet the actual conditions of different projects, such as construction, railway, hydropower, transportation, mine and other units.

Technical specification of  Vertical Turret Lathes  Products C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm
