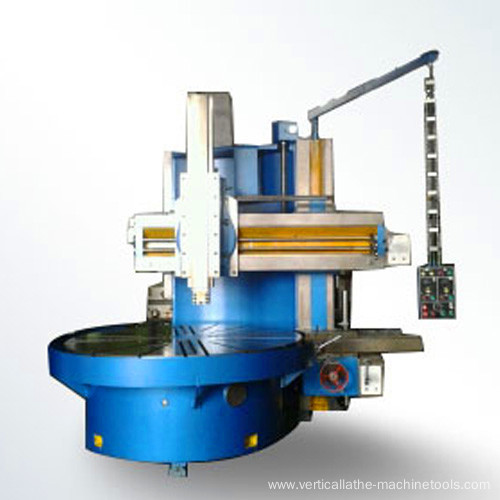

New century cnc single column vertical turning lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5125

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 1350mm

Maximum Weight Of Workpiece: 10ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: SHENGYONG

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 SET /MONTH

Certificate: ISO9001

Product Description

Single column vertical lathe has the Conventional type and CNC type. The conventional type is represented as "C51_" the NC-type represented as "CK51_". Single column vertical lathe is suitable for finely and roughly machining of the internal and external cylindrical surface, inside and outside taper, surfacing, grooving of the ferrous metals, nonferrous metals and some non-metallic materials with high-speed steel, carbide cutting tools.

Features of single column vertical lathe:

The Single-column vertical lathe (C51 series) is a super rigid machine with big machining capacities, stable and rigid structure and high machining efficiency.

single column vertical lathesingle column vertical lathesingle column vertical lathesingle column vertical lathesingle column vertical lathe

Technical specification of CNC single column Vertical Turning Lathe VTL Machine CK5125

1 Table diameter 2300 mm

2 Maximum turning diameter 2500 mm

3 Maximum height of workpiece 1350 mm

4 Maximum weight of workpiece 10 t

5 Speed change of table 2.5-80 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1600 mm

Vertical travel of tool post 915 mm

10 Horizontal travel of side cutter bar 750 mm

Vertical travel of side cutter bar 1100 mm

11 Crossrail travel 850 mm

12 Maximum section scale of tool bar 35×45 mm

13 Power of main motor 45 kw

revolutions 1470r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 23 t

17 Overall dimensions(L×W×H) 3450×3430×4100 mm

Looking for ideal Single Column Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Single Column Vertical Lathes are quality guaranteed. We are China Origin Factory of CNC Single Column Vertical Lathe. If you have any question, please feel free to contact us.
