Home > Products > Lathe Machine > Cnc metal vertical lathe machine prices

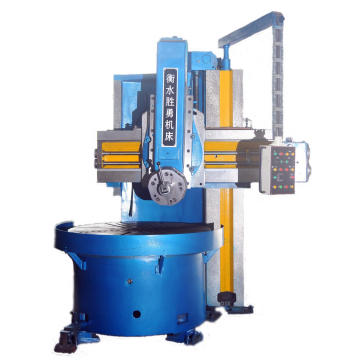

Cnc metal vertical lathe machine prices

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1800mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 5 Ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Product Description

Cnc Vertical Lathe is appropriate for high-speed steel, carbide tools and ceramic tools. We, as the vertical lathe manufacture, can supply best Conventional Vertical Lathe machines prices and CNC Lathe Machine prices. The kind of Metal Lathe Machine can be handed in complex surfaces, inside and outside cylindrical surfaces, conical surfaces, threads, circular surfaces and ferrous metals, nonferrous metals and certain non-metallic parts.

CNC Lathe Machine Prices and features

1 Hydrostatic zinc alloy guide ways inlaid on the worktable features low friction between moving parts and high load capacity for the worktable. The spindle in the worktable is carried by a double row cylindrical roller bearing with high-precision tolerance class.

2 Finite element analysis of the gantry frame structure is adopted to make the structure reach the optimum state.

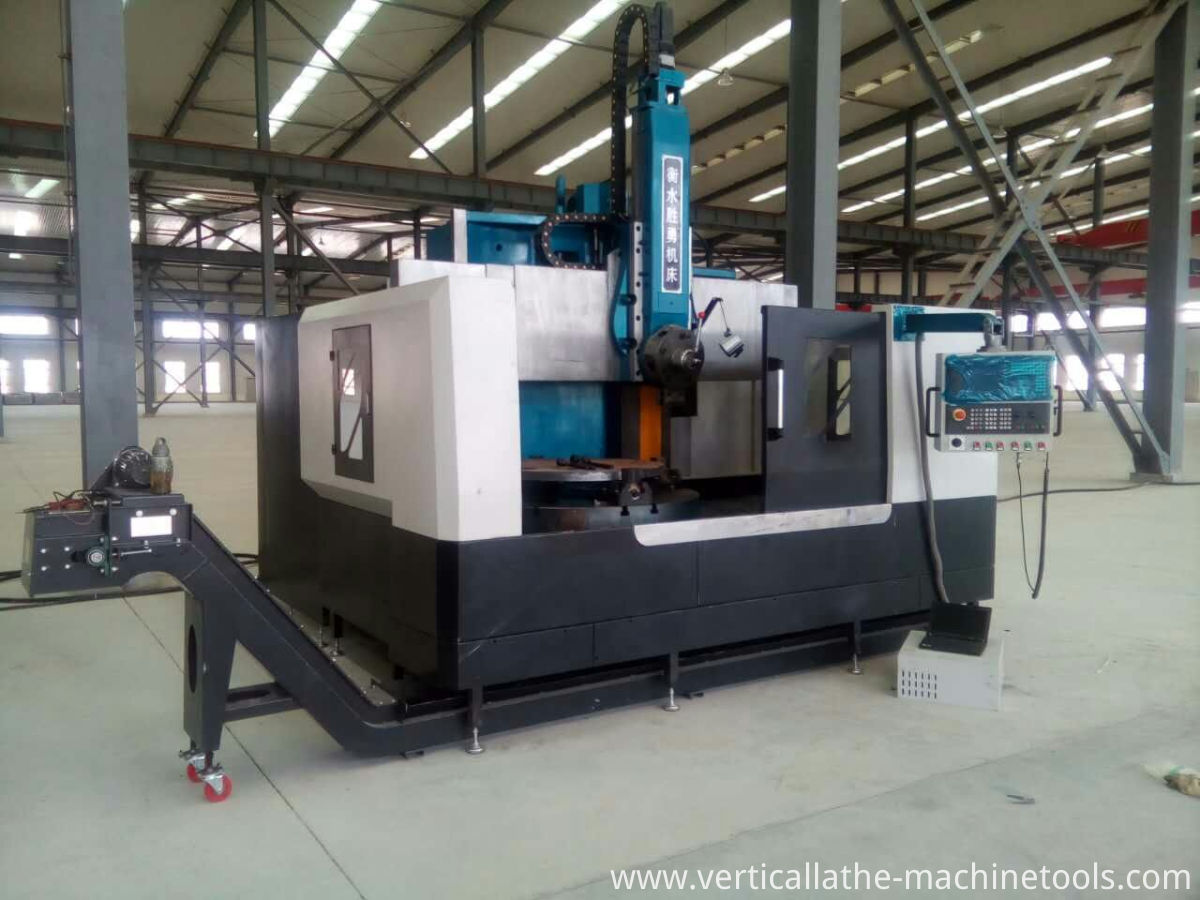

Vertical type Cnc lathe machine prices

Lathe Machines Prices

Technical specification of vertical type cnc lathe machine prices C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 1000 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 17.5 t

16 Overall dimensions(L×W×H) 2900×2900×3800 mm

Parts of vertical type Metal lathe machine prices

Lathe machines pricesLathe machines pricesLathe machines prices

Recommend CNC Lathe Machine Prices

Lathe Machines PricesLathe Machines Prices


Looking for ideal Metal Lathe Machine Prices Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Lathe Machine Prices are quality guaranteed. We are China Origin Factory of Lathe Machines Prices. If you have any question, please feel free to contact us.
