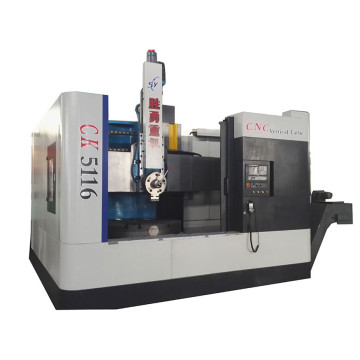

Large cnc vertical lathe services

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5116

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1600mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 5000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

We are Cnc Vertical Lathe provider and can offer large vertical lathe services.Our Vertical Lathes adopt the most advanced technology, modular design and finite element analysis. The large cnc lathes combine the advanced technology of electromechanical,electricity and hydraumatic to reflect high precision and precision cutting.
Vertical Lathe Machine can be carried out inside and outside cylindrical surface, conical surface, arc and complex rotary type high-speed turning surface shape.Vertical Lathe Machine can use high-speed steel or carbide cutting tools to be automatic processing.The tool holder of CNC Vertical Lathes can be numerically controlled to achieve two axis linkage, processing arc surface.
As the cnc vertical lathe provider, our vertical lathes has the following features:
1Vertical lathe machine table uses constant hydraulic-static guideway, which has large carrying capacity and high rotary precision.
2Vertical lathe machine has symmetrical structure to avoid hot deformation to ensure long-term stability.
3Vertical lathe machine casting adopts HT250 casting wichch has been treated by a tempering treatment and a vibration aging treatment in order to eliminate internal stress.

CNC vertical lathe provider

Technical specification of large cnc lathes CK5116

1 Table diameter 1400 mm

2 Maximum turning diameter 1600 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 915 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 12.5 t

17 Overall dimensions(L×W×H) 2800×2800×3800 mm

Recommend other large cnc lathes in workshop

Large cnc lathes


Large cnc lathes


Large cnc lathes

Large cnc lathes

Looking for ideal Large Vertical Lathe Services Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Lathe Provider are quality guaranteed. We are China Origin Factory of Large Cnc Lathes. If you have any question, please feel free to contact us.
