Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: CK5126
Brand: Shengyong
Type: Vertical Lathe
Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Setting Mode: Table
Precision: Precision
Certification: ISO 9001
Condition: New
Table Diameter: 2300mm
Maximum Turning Diameter: 2600mm
Maximum Height Of Workpiece: 1300mm
Maximum Weight Of Workpiece: 10ton
Packaging: on requet
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB
Cnc Vertical Lathe turning machines are suitable for high-speed steel and hard alloy cutter, rough and fine turning processing of inner and outer cylindrical surface, conical surface, plane, all kinds of rotary surface and grooving of ferrous metals, nonferrous metals and some non-metallic parts.
cnc vertical lathe turning machine
Technical specification of cnc vertical lathe turning machine CK5126
1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10 t
5 Speed range of table 2.5-80 r/min
6 rotation speed of work table 16
7 Range of feed rates 0-1000 mm/min
8 Step stepless
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470r/min
14 Power of feed motor 1.3/1.7 kw
Rotating Speed 940/1440 r/min
15 Rapid travelling speed of tool post 2000 mm/min
16 Machine weight(Approx) 19.5 t
17 Overall dimensions(L ×W×H) 3450x3430x4100mm

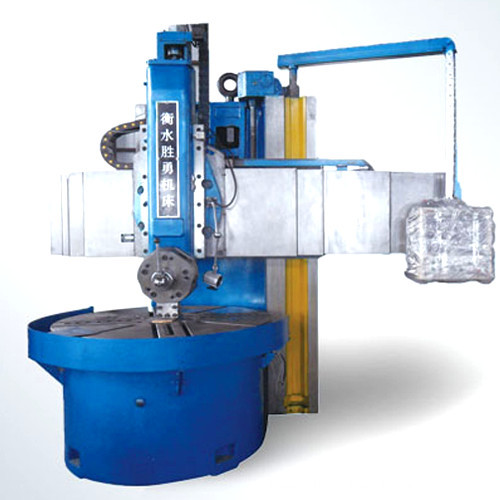

Photo of cnc vertical lathe turning machine
