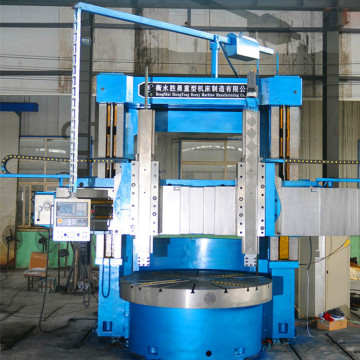

Double column vertical lathe vtl machines

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days

Basic Info

Model No.: CK5260

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: Φ5200 Mm, 5200MM

Maximum Turning Diameter: 6000MM

Maximum Height Of Workpiece: 2500-4500mm

Maximum Weight Of Workpiece: 32/50ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Vertical lathe vtl machine is suitable for high-speed steel, carbide and ceramic tools, black metal, non-ferrous metals and some non-metallic parts of rough and fine processing.Vertical lathe VTL Machines can be carried out inside and outside cylindrical surface, conical surface, arc, thread and a variety of complex rotary type turning machining.
Vertical lathe vtl machine key components use domestic and foreign brand-name products to ensure its reliability and accuracy.Vertical lathe vtl machine worktable,base and column adopts the thermal symmetrical structure. The main parts are optimized by finite element method, and the full aging treatment is carried out. The CNC system uses SIEMENS, FANUC,GSK,KND or other systems selected by the user.

Vertical lathe vtl machine model has single column vtl and double column vtl.

Single column vtl model:C5112/C5116/C5118/C5120/C5123/C5126.

Double column vtl model:C5225/C5232/C5235/C5240/C5250/C5260/C5263.

If interested,contact us for Vertical Lathe Machine tool price.

Vertical Lathe Vtl Machine

Technical parameters of Double column vertical lathe vtl machines CK5260
Table diameter:Φ5200 mm
Maximum turning diameter :Φ6000mm
Maximum height of workpiece:2500-4500 mm
Maximum weight of workpiece:32/50ton
Maximum cutting torque of table:105000N.m
Step of table rotation:Two gears stepless speed regulation
Speed range of table:0.5-27r/min
Feed step:Stepless speed regulation
Range of feed rates:0.1-1000mm/min
Rapid travelling speed of tool post:2000mm/min
Beam travel:2150mm
Horizontal travel of tool post:3300mm
Vertical travel of tool post:1400/1600mm
Beam lifting speed :380mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):60×65mm
Power of main motor:75KW
Overall dimensions (L×W×H ) :18000×6500×6000mm
Machine weight ( approx ):150-200 ton

Recommend vertical lathe vtl machines in workshop

Vertical lathe vtl machines
Vertical lathe vtl machines

Vertical lathe vtl machines

Vertical lathe vtl machines

Looking for ideal Vertical Lathe Vtl Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Vtl Machines are quality guaranteed. We are China Origin Factory of Vertical Lathe Machine Tool Price. If you have any question, please feel free to contact us.
