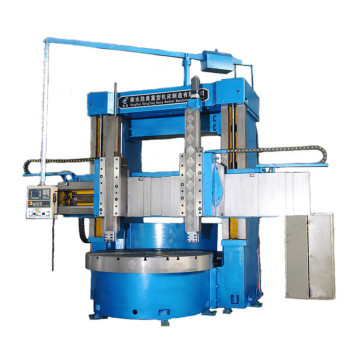

Dro manual single column vertical lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: Used

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 1600mm

Maximum Weight Of Workpiece: 10 Ton

Table Diameter: 2250 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

The new manual Vertical Lathes are common digital vertical lathe that is equipped with two turrets.Vertical Lathe Machine turrets can respectively complete the turning inside and outside the cylindrical surface, the inner and outer conical surface and the end, grooving, cutting and other processes.
Dro manual vertical lathe can be used to turn the inside and outside cylinders, conical surfaces, arc surfaces and planes. . Dro manual vertical lathes are suitable for cast iron, steel and non-ferrous metal parts for rough and fine processing. Vertical Lathe Machines are is suitable for motor, water turbine generator, aviation, mining machinery, metallurgy and common machinery industries machining roughly and finely etc.
Dro manual vertical lathe has large power, good rigidity and high precision.Vertical Lathe Machine is mainly made up of bed, column, beam ,turret and workbench.Vertical lathe machine castings are made of high quality iron castings and after aging treatment to eliminate stress.The bed body is designed with the box structure and thoughtful rib support.

Dro manual vertical lathe

Technical specification of Dro manual vertical lathes C5225


1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

More single column and double column vertical lathe machines in factory

Dro manual vertical lathe

Vertical Lathe Machines

Vertical Lathe Machines


Looking for ideal Dro Manual Vertical Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Dro Manual Vertical Lathe are quality guaranteed. We are China Origin Factory of New Manual Vertical Lathes. If you have any question, please feel free to contact us.
