Double Column Metal Vertical Lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5240

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 400mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 32ton

Table Diameter: 3150mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Double column Vertical Lathes are universal lathe,can conduct rough and fine machining for metal.Double Column vertical lathes can be used for roughing and finishing of the inner and outer circular surface,cone surfaces, cutting grooves on ferrous metal, non-ferrous metal materials etc.

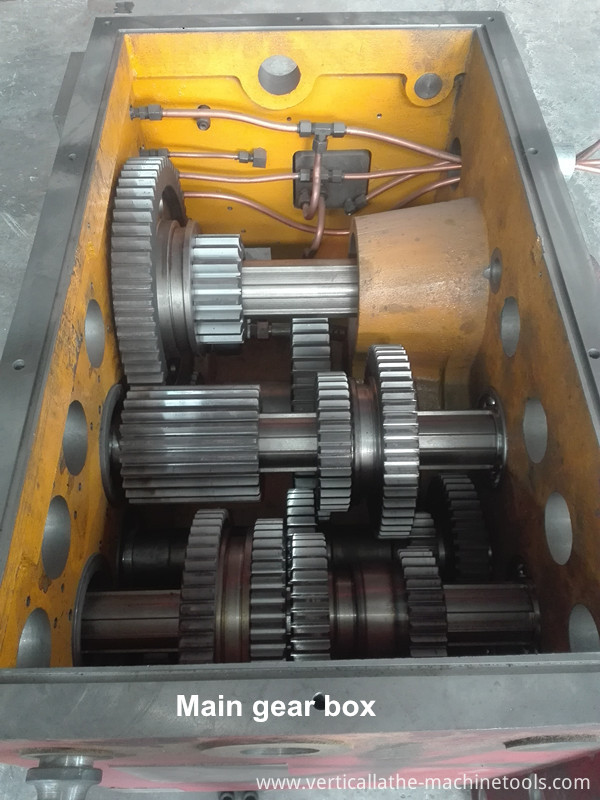

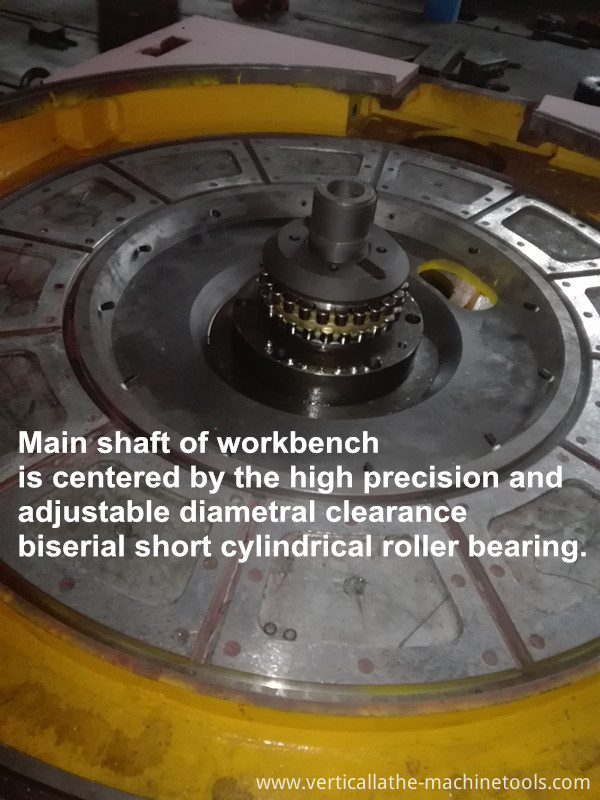

Double column Vertical Lathe Machine is equipped with AC asynchronous servo motor to drive, through the two gears mechanical speed to achieve stepless speed control.Its metal casting is made of high quality resin sand casting process.Column is closed by gantry frame, and the structure dimension and stress state are optimized by finite element analysis.Double column vertical lathes table has large bearing capacity and high rotary accuracy,its spindle adopts NN30 double row cylindrical roller bearings.

Double Column Metal Vertical Lathe Machine

Double Column Vertical Lathes

Technical specification of Double Column Metal Vertical Lathe machine C5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

8010×4400×5080mm

8010×4400×5600mm

8010×5569×6230mm

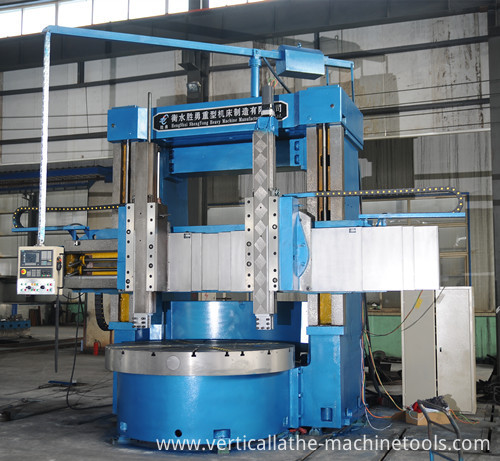

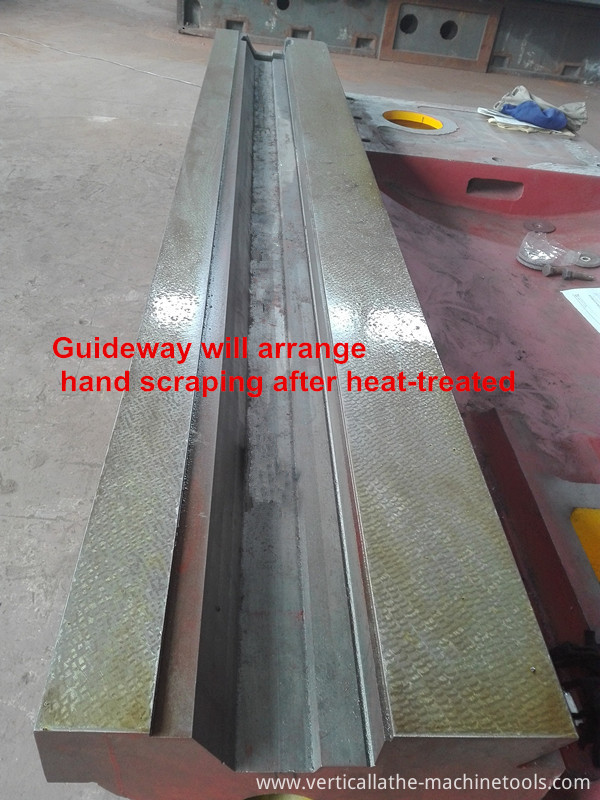

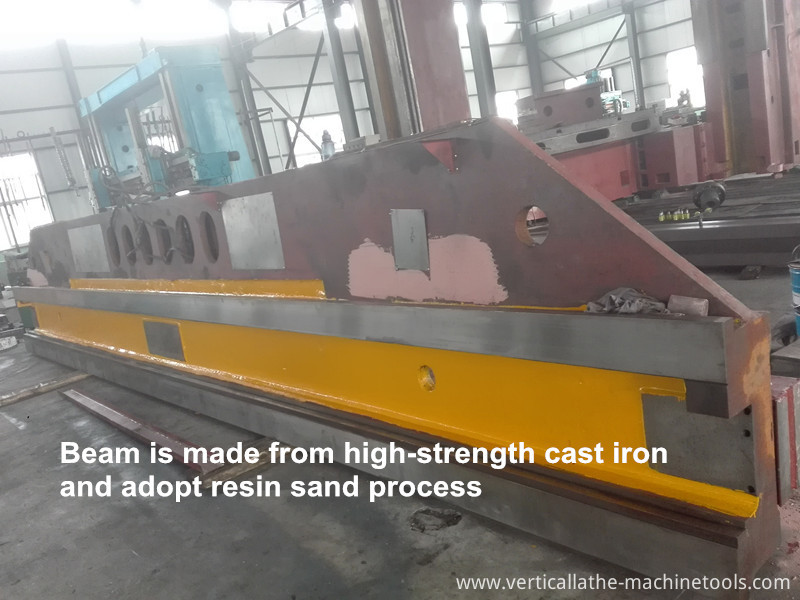

Photo of Double Column Metal Vertical Lathe machine

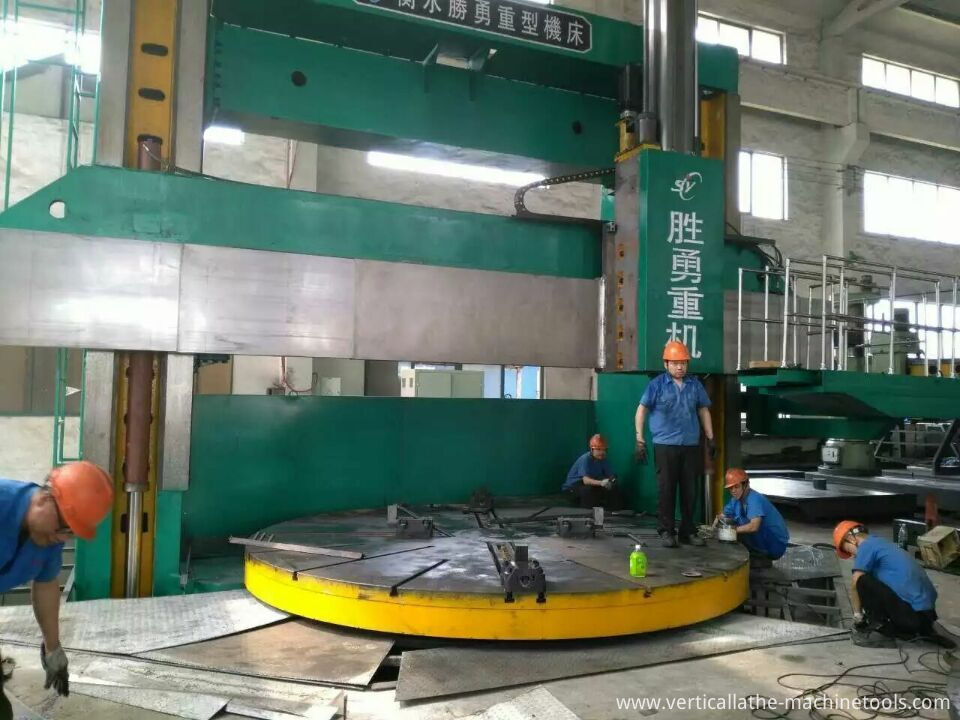

Double Column Vertical LathesDouble column vertical lathesDouble column vertical lathesDouble column vertical lathesDouble column vertical lathes

Recommend double column vertical lathes

Double Column Vertical Lathes

Double Column Vertical Lathes

Double Column Vertical Lathes

Double Column Vertical Lathes
