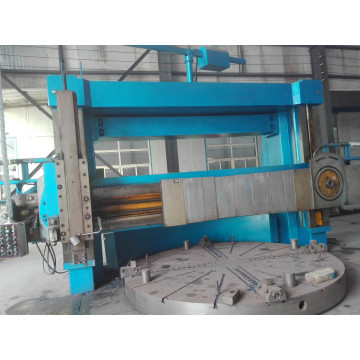

Large vtl machining provider

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20 Ton

Table Diameter: 2250 Mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Do you want to buy CNC VTL Machine ? We are Vertical Turret Lathe provider in China. Our large vtl machining is suitable for machining large and medium parts of castings, steel parts and non-ferrous metals. It can be machined to the outside, hole, end face and grooving.Large vtl machining is mainly for large and medium-sized processing parts for the object to achieve strong, high precision and high production efficiency.

Large vtl machining can be fit for the automotive and spare parts industry processing like electric turbine, valve body, flange, pump and other large-scale parts processing. CNC system, Main electrical components, ball screws and hydraulic parts use brand-name manufacturers products.

Vertical turret lathe provider

Technical specification of Large vtl machining C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

Recommend other large vtl machining

Large vtl machining

Large vtl machining

Large vtl machining

Looking for ideal Buy Cnc Vtl Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Large Vtl Machining are quality guaranteed. We are China Origin Factory of Vertical Turret Lathe Provider. If you have any question, please feel free to contact us.
