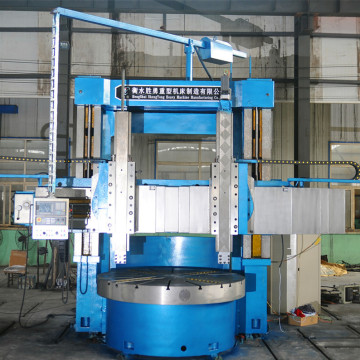

2500 mm Cnc vertical lathe turning tool information

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Condition: New

Maximum Turning Diameter: 2500mm

Maximum Weight Of Workpiece: 20 Ton

Guide Rail: Horizontal Guide Rail

Maximum Height Of Workpiece: 2800 Mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Are you vertical lathe buyer ? We would like to introduce 2500 mm vertical lathe information to you. Vertical Lathe Machine is suitable for high speed steel cutting tools and hard alloy cutting tools to process all kinds of black metal nonferrous metal and some nonmetal.Vertical Lathe Machine is suitable for machining round and shell revolving parts.
2500 mm Cnc Vertical Lathe turning tools is widely used in machining industry, metallurgical machinery, chemical machinery, power generation equipment.Cnc vertical lathe turning tools can be used for coarse and fine turning inner circle, the hole and end face as well as internal and external conical surface processing.
The main structure feature of vertical lathe machine is its vertical axis position.The main feature of vertical lathe machine is that the worktable is in the horizontal plane, and the installation and adjustment of the workpiece is convenient. The worktable is supported by the guide rail with good rigidity and smooth cutting.
Cnc vertical lathe turning tools are mainly composed of the left, right column, top beam, worktable, base and other parts of the frame structure. The structure is strong and can bear heavy cutting load.
Vertical lathe information model: C5225/C5232/C5240/C5250/C5263
Maximum turning diameter:2500/3150/4000/5000/6300mm
Maximum processing height:(1600-2800mm,1600-3000mm,1600-3200mm,2500-4200mm,2500-4500mm)
Maximum processing weight:10ton,20ton,32ton,50ton,100ton

Cnc vertical lathe turning

Technical specification of Cnc vertical lathe turning tools CK5225

Table diameter:φ2250mm
Maximum turning diameter:φ2500mm
Maximum height of workpiece:1600-2800mm
Maximum weight of workpiece:10/20ton
Maximum cutting torque of table:63000N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-63r/min
Feed step :18 step/ Stepless speed regulation
Range of feed rates :0.25-90/0.1-1000mm/min
Rapid travelling speed of tool post: 1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post: 1400mm
Vertical travel of tool post:1000/1250/1400/1600 mm
Beam lifting speed :350 mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55 KW
Overall dimensions (L×W×H ):5180×4600×4952 mm
Machine weight ( approx ):33-38ton

Look for more vertical lathe information

Vertical Lathe Information

Vertical Lathe Information

Vertical Lathe Information

Vertical Lathe Information

Looking for ideal Cnc Vertical Lathe Turning Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Information are quality guaranteed. We are China Origin Factory of Vertical Lathe Buyer. If you have any question, please feel free to contact us.
