VTL double column vertical lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5235

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: Φ3200mm

Maximum Height Of Workpiece: 1600-3000mm

Maximum Weight Of Workpiece: 10/20/32ton

Table Diameter: Φ2830mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Double column Vertical Lathes belongs to large mechanical equipment. Vertical lathes are used for machining large and heavy workpieces with big radial size, relatively small axial dimension and complex shape.Vertical Lathe Machines are applied to processing the cylindrical surface, end face, taper surface, cylindrical bore and taper hole of various kinds of plates.
The cnc vtl model CK5235 is double column cnc vtl.The vertical lathes have the function of constant speed cutting, chamfering, fixed cycle, thread cutting, graphic display function .The cnc vtl model CK5235 can be used for turning end face, outer diameter, cone surface, arc surface, thread, taper thread, end thread etc.
The vertical lathes consist of gantry frame,main drive gearbox, worktable, beam, lifting mechanism, tool holder,hydraulic system and electric control system etc.Vertical Lathe Machine worktable is equipped with zinc alloy wear-resisting guide plate, and the pressure oil is inserted between the guides.
Vertical lathe machines table speed can choose 16 speed, but also can use variable frequency stepless speed regulation.The rigidity and stability of vertical Lathe Machine is ensured by severe artificial aging and oscillation aging.Vertical lathe machines are fit for heavy machinery, power generation, shipbuilding, metallurgy and other industries of large parts processing.Contact us for more cnc vtl model and cnc vtl price.

Vertical lathes

Technical parameters of vtl double column vertical lathes CK5235

Table diameter:Φ2830 mm

Maximum turning diameter:Φ3200 mm

Maximum height of workpiece:1600-3000mm

Maximum weight of workpiece:10/20/32ton

Maximum cutting torque of table:63000 N.m

Step of table rotation:Two gears stepless speed regulation

Speed range of table:2-40 r/min

Feed step:Stepless speed regulation

Range of feed rates:0.1-1000mm/min

Rapid travelling speed of tool post:1550/2000 mm/min

Beam travel:1250mm

Horizontal travel of tool post:1900mm

Vertical travel of tool post:1000/1250/1400/1600mm

Beam lifting speed :350mm/min

Maximum rotation angle of tool post:±30°

Clamping size of tool chuck ( Width X Height):40×50mm

Power of main motor:55KW

Overall dimensions (L×W×H ):6180×4600×4952mm

Machine weight ( approx ):38-62ton

Recommend more vertical lathes in factory workshop

Vertical lathes

Vertical lathes

Vertical lathes

Product Categories : Vertical Lathe Machine

Product Images

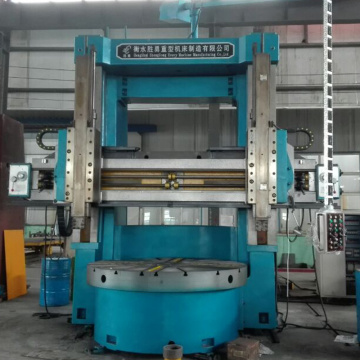

  • VTL double column vertical lathes

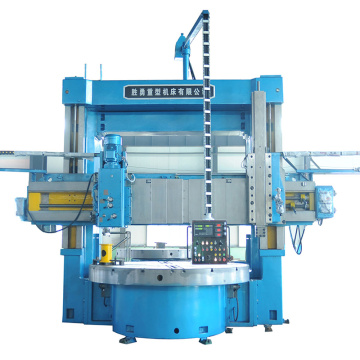

  • VTL double column vertical lathes
