CNC Floor type horizontal boring machine

    Unit Price: 50000~90000 USD
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: TK6913

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

Product name : CNC Floor type Horizontal Boring Machine

Features of CNC Floor type horizontal boring machine:

The spindle system features strong rigidity,The machine can be used for boring,and milling.

It can use all kinds of standard cutter, and has large cutting torque and cutting depth. The machine bed, table, bar are manufactured with good cast iron.The spindle system features strong rigidity, CNC Floor type horizontal boring machine can be used for boring,and milling.

CNC Floor type horizontal boring machine model:

Floor type horizontal Boring Machines TK6913

Floor type horizontal boring machines TK691

Technical specification of CNC floor type Horizontal boring machine:TK6913

Spindle diameter 130 mm
Milling spindle end diameter 221.44 mm
Ram dimension(width×height) 350×380 mm
Spindle taper ISO-50
Boring spindle travel 800 mm
Ram stroke 700 mm
Total Travel of boring axis and ram 1500 mm
Travel of headstock 2000 mm
Column transverse travel 3000 mm
Maximum torque of milling spindle 15000 KN.m
Spindle speed range ( stepless) 3.15-600 rpm
Boring axis feed range (stepless) 1-1500 mm/min
Feed range of Ram ( stepless) 1-3000 mm/min
Feed range of headstock 1-6000 mm/min
Rapid speed of headstock 6000 mm/min
Feed range of column ( stepless) 1-6000 mm/min
Main drive motor 1PH7 224 37 kw
Feed motor of boring axis 1FT6 105 8AB-71 41 KN.m,1500rpm
Feed motor of RAM 1FT6 105 8AB-71 42 KN.m,1500rpm
Feed motor of headstock 1FT6 108-8AC71 58 KN.m, 2000 rpm
Feed motor of column 1FT6 108-8AC71 58 KN.m, 2000 rpm
Machine weight( excluding the platform and revolving platform ) 65 t
Overall dimensions(L×W×H) 9220×3300×6385 mm

Horizontal boring machine

Looking for ideal Horizontal Boring Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Horizontal Boring Machine are quality guaranteed. We are China Origin Factory of CNC Horizontal Boring Mill. If you have any question, please feel free to contact us.

Product Categories : Boring Machines

Product Images

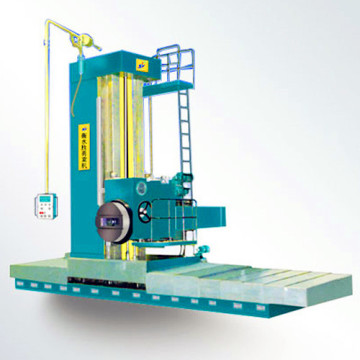

  • CNC Floor type horizontal boring machine
