Payment Type: | L/C |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Set/Sets |
Model No.: CW61125
Brand: Shengyong
Type: Horizontal Lathe
Processing Accessory: Centre CNC Lathe
Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Table
Precision: Precision
Certification: ISO 9001
Condition: New
Maximum Swivel Diameter On The Bed: 1250mm
Maximum Turning Diameter Over Carriage: 9010mm
Maximum Length Of Workpiece: 60dm
Maximum Weight Between Center: 8 Ton
Diameter Of Faceplate: 1250mm
Maximum Torque Of Faceplate: 63KN.m
Range Of Spindle Speeds: 1-200r/min
Maximum Cutting Force Of Carriage: 71KN
Total Cutting Force: 100KN
Range Of Feed Rates ( Long): 0.1-40 Mm/min
Packaging: 2x40'ft container
Productivity: 5 set
Transportation: Ocean
Place of Origin: China
Supply Ability: 5 set /month
Certificate: ISO9001
Payment Type: L/C
Incoterm: FOB

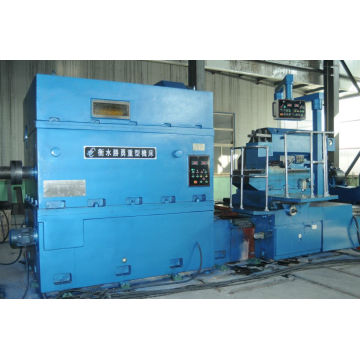

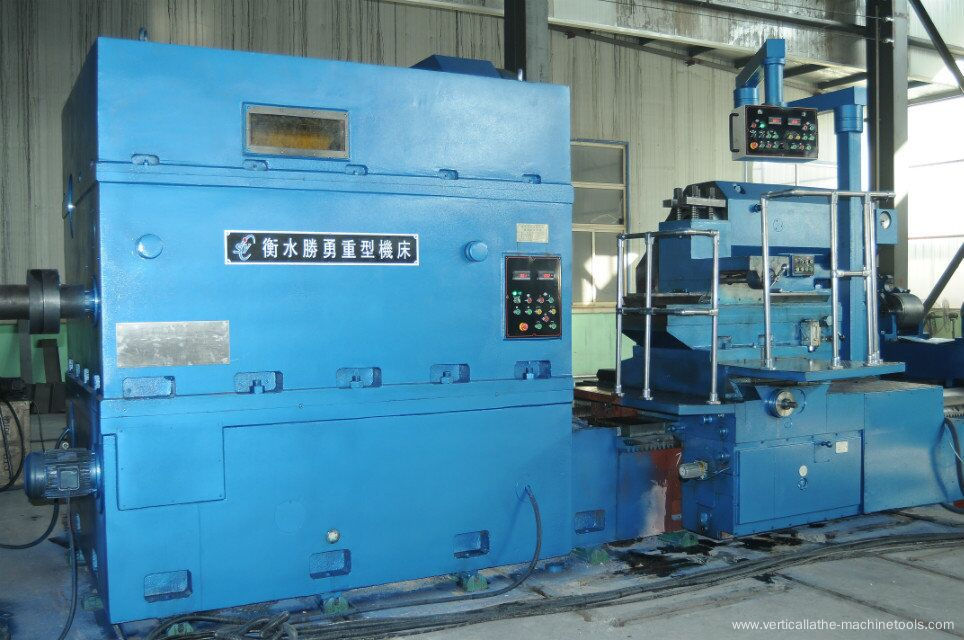

Large Centre Lathe Machine is the light-duty horizontal Lathe. It's appropriate for cylindrical and disk-shaped elements processing. Center lathe machine is mostly used to process various rollers, large-diameter tire moulds ,large-diameter flanges, various valves and pipelines. Spindle system has nice rigidity, high accuracy, robust cutting force. Feed system adopt the stretched ball screw, increasing the screw rigidity and prevent the deformation of the screw.
Center lathe machine model:
CW61125/CW61145/CW61160/CW61200/CW61125/CW61315
CK61100/CK61125/CK61160/CK61200/CK61250
Technical specification of CNC Center Lathe Machine CW61125
1 Maximum swivel diameter on the bed 1250 mm
2 Maximum turning diameter over carriage 900 mm
3 Maximum length of workpiece 60dm
4 Maximum weight between center 18t
5 Diameter of faceplate 1250mm
6 Maximum torque of faceplate 63KN.m
7 Range of spindle speeds 1-200r/min
8 Maximum cutting force of carriage 71KN
9 Total cutting force 100KN
10 Range of feed rates ( long) 0.1-40 mm/min
11 Range of feed rates(Trans ) 0.05-20 mm/min
12 Range of feed rates(longitudinal) 0.025-10 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1500 mm/min
15 Range of Processing screw (metric) 1-60 mm
16 Range of Processing screw(imperial system) 6-1/2(t/in)
17 Module (No) 1~6
18 Dimensions of close mode steady supporting Φ300-600 mm
19 Dimensions of open mode steady supporting Φ450-900mm
20 Scale of tool bar section 60×60mm
21 Power of main motor DC:55KW
22 Machine weight(Approx) 26/30/36/39T
23 Overall dimensions(L×W×H) 1138×236×209cm
